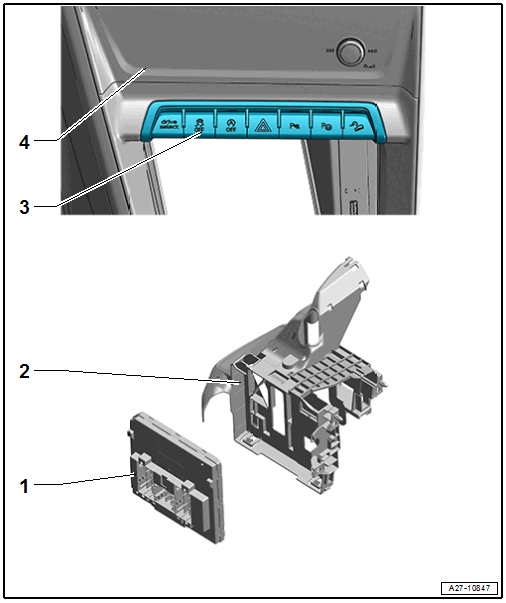

Component Location Overview - Start/Stop System
- Vehicle Electrical System Control Module -J519-
- Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
- Bracket
- For vehicle electrical system control module
- Start/Stop Mode Button -E693-
- Removing and installing. Refer to BUTTONS IN CENTER CONSOLE, REMOVING AND INSTALLING, Switch Module in Instrument Panel, Center -EX22- .
- Center Console
