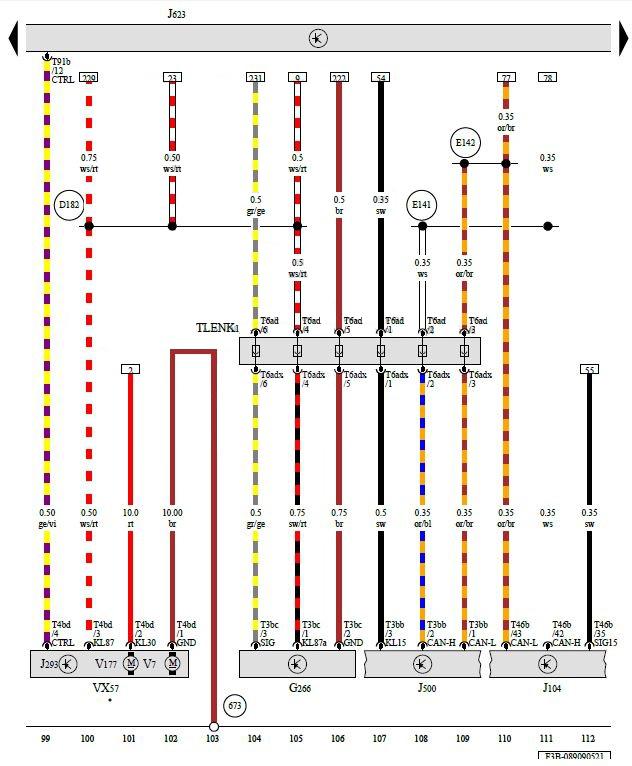

Call Outs For OIL LEVEL THERMAL SENSOR, ABS CONTROL MODULE, POWER STEERING CONTROL MODULE, ENGINE/MOTOR CONTROL MODULE, RADIATOR FAN
G266 Oil Level Thermal Sensor
J104 ABS Control Module
J293 Radiator Fan Control Module
J500 Power Steering Control Module
J623 Engine/Motor Control Module
T3bb 3-Pin Connector, Black
T3bc 3-Pin Connector, Black
T4bd 4-Pin Connector, Black
T6ad 6-Pin Connector, Black
T6adx 6-Pin Connector, Black
T46b 46-Pin Connector, Black
T91b 91-Pin Connector, Black
TLENK1 Steering Coupling Point 1
V7 Radiator Fan
VX57 Radiator Fan
V177 Radiator Fan 2
673 - Ground Connection 3 on Left Front Longitudinal Member
D182 - Connection 3 (87A) (in Engine/Motor Compartment Wiring Harness)
E141 - Connection (CAN Bus Suspension Sensors High) (in Engine/ Motor Compartment Wiring Harness)
E142 - Connection (CAN Bus Suspension Sensors Low) (in Engine/ Motor Compartment Wiring Harness)
* Pre-Wired Component
