Ignition Coils, Removing And Installing: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

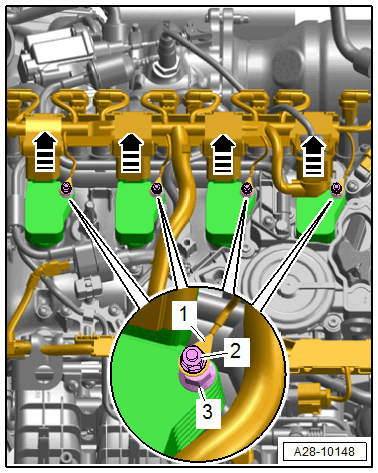

-- Remove the nut -2- and free up the ground wire -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors and remove from the ignition coils at the same time -arrows-.

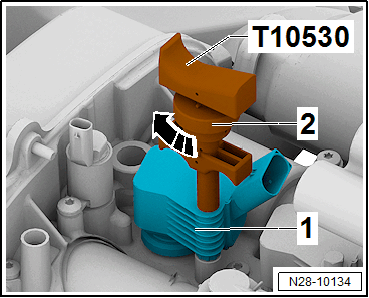

-- Insert the : T10530  in the ignition coil opening -1-.

Fig 1: Identifying Puller T10530

Courtesy of AUDI OF AMERICA, LLC

-- Turn the knurled nut -2- clockwise in direction of -arrow- until the puller is clamped.

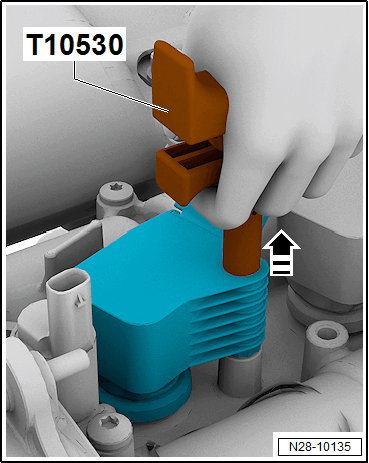

-- Remove the ignition coil carefully vertically in direction of -arrow- using the : T10530  .

Fig 2: Identifying Puller T10530

Courtesy of AUDI OF AMERICA, LLC
