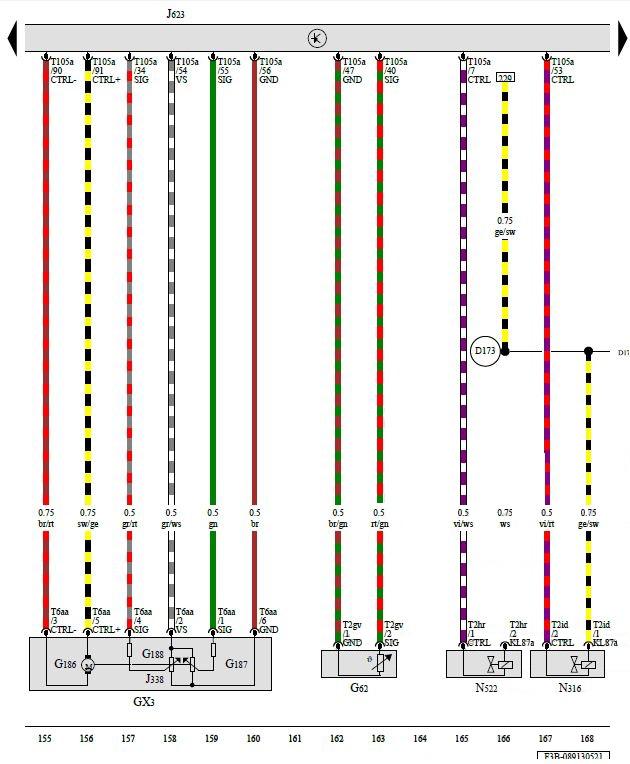

Call Outs For THROTTLE VALVE CONTROL MODULE, ENGINE COOLANT TEMPERATURE SENSOR, ENGINE/MOTOR CONTROL MODULE, INTAKE MANIFOLD RUNNER CONTROL VALVE, PISTON COOLING NOZZLE CONTROL VALVE

Courtesy of AUDI OF AMERICA, LLC

GX3  Throttle Valve Control Module

G62  Engine Coolant Temperature Sensor

G186  EPC Throttle Drive

G187  EPC Throttle Drive Angle Sensor 1

G188  EPC Throttle Drive Angle Sensor 2

J338  Throttle Valve Control Module

J623  Engine/Motor Control Module

N316  Intake Manifold Runner Control Valve

N522  Piston Cooling Nozzle Control Valve

T2gv  2-Pin Connector, Black

T2hr  2-Pin Connector, Black

T2id  2-Pin Connector, Black

T6aa  6-Pin Connector, Black

T105a  105-Pin Connector, Black

D173 -  Connection 87 (in Engine Pre-Wiring Harness)
