Parking Aid Control Module -J446-, REMOVING AND INSTALLING: Removing
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN CENTER SECTION OF VEHICLE .
-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

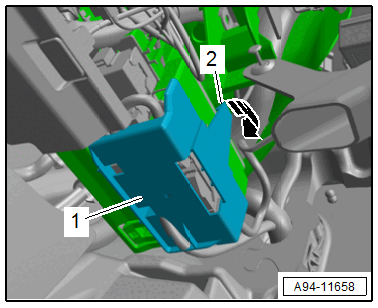

-- If equipped, release the retainer -2- in direction of -arrow- and remove the cover -1- downward.

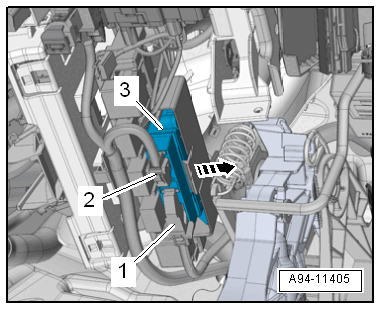

-- Disconnect the connectors -1 and 2- by pressing the tab, turning the retaining bracket and disconnecting the connector.
-- Release the tab in direction of -arrow- and remove the control module -3- downward from the bracket.
