Engine, Supporting In Installation Position

Special tools and workshop equipment required

• Engine Support Set: 10-222B
  Fig 1: Engine Support Bridge 10-222A

  Courtesy of AUDI OF AMERICA, LLC

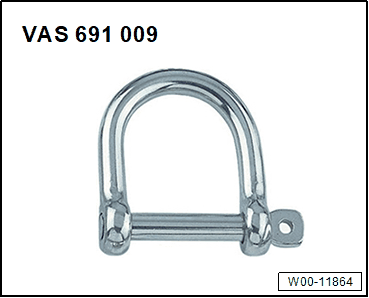

• Shackle: VAS691009

  Courtesy of AUDI OF AMERICA, LLC

Procedure

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Release the retainer in direction of -arrow- and remove the engine cover mount -1-.

Fig 2: Identifying Engine Cover Mount

Courtesy of AUDI OF AMERICA, LLC

Vehicles with Secondary Air System:

-- Remove the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

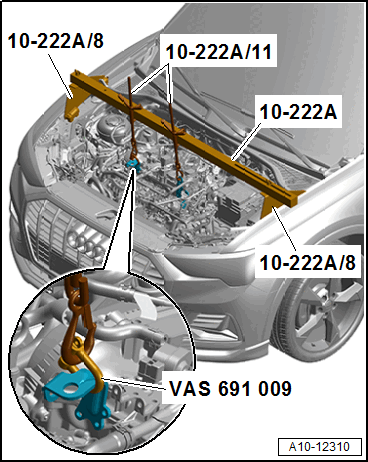

-- Position the : 10-222A  on the left and right fender bolting edges as shown.

-- Engage the : 10-222A/11  on the engine lifting eye.

-- Slightly pretension the engine/transmission assembly with the spindle, do not lift.

Assembling

Assemble in the reverse order of removal. Note the following:

-- If removed, install the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
