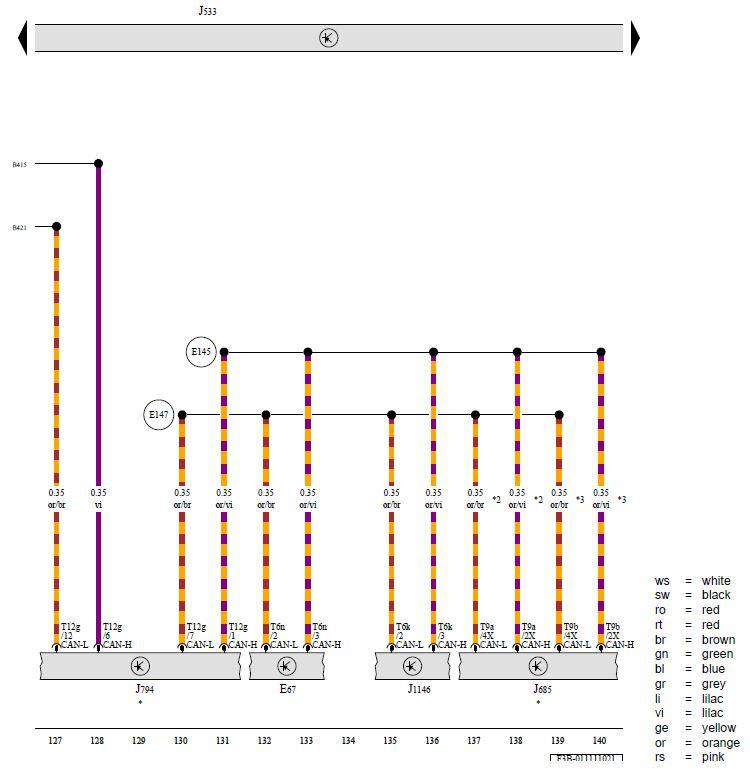

Driver Volume Control, Data Bus on Board Diagnostic Interface, Front Information Display Control Head, Information Electronics Control Module 1, Mobile Device Charger 1

Courtesy of AUDI OF AMERICA, LLC

E67 -  Driver Volume Control

J533 -  Data Bus on Board Diagnostic Interface

J685 -  Front Information Display Control Head

J794 -  Information Electronics Control Module 1

J1146 -  Mobile Device Charger 1

T6k -  6-Pin Connector, Black

T6n -  6-Pin Connector, Gray

T9a -  9-Pin Connector, Black

T9b -  9-Pin Connector, Blue

T12g -  12-Pin Connector, Gray

B415 -  Infotainment CAN Bus High Connection 1 (in Main Wiring Harness)

B421 -  Infotainment CAN Bus Low Connection 1 (in Main Wiring Harness)

E145 -  Connection 1 (CAN Bus Information Electronics Control Module 1, High)

E147 -  Connection 1 (CAN Bus Information Electronics Control Module 1, Low)

* -  Refer to Applicable MMI (Information Electronics) Wiring Diagram

*2 -  Version 1

*3 -  Version 2
