Engine With Additional MPI Fuel Injection (Exhaust Version)

The following components are visible after removing the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

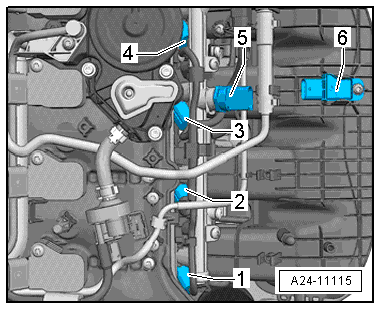

Fig 1: Component Location: Fuel Injectors, MPI System, Engine Code CYFB
GWWA24-11115Courtesy of AUDI OF AMERICA, LLC
  1. Cylinder 1 Fuel Injector 2 -N532-
  2. Cylinder 2 Fuel Injector 2 -N533-
  3. Cylinder 3 Fuel Injector 2 -N534-
  4. Cylinder 4 Fuel Injector 2 -N535-
  5. Low Fuel Pressure Sensor -G410-
