Connection For External Multimedia Devices, Removing And Installing: Notes

The external multimedia device connection (External Audio Source Connection -R199- /USB Distributor -R293-) -1- is located in the rear center console storage compartment.

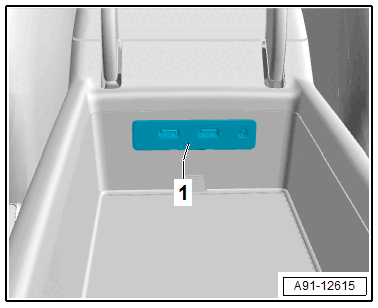

Fig 1: AMI Component Location - USB Distributor -R293- /USB Connection 1 -U41- /USB Connection 2 -U42-, AUX IN, ASI, UI2/UE7

Courtesy of AUDI OF AMERICA, LLC
