Comfort System Central Control Module -J393-, REMOVING AND INSTALLING: Removing

-- Remove the Relay and Fuse Panel 2 -SR2-. Refer to OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .

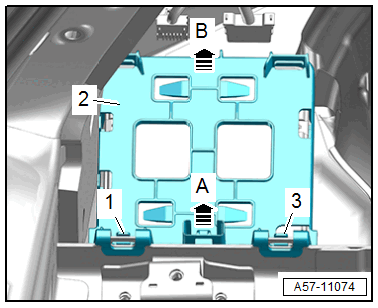

-- Release the catches -1 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the bracket -2- for the central control module slightly upward in direction of -arrow A- and at the same time remove on the outside from the threaded pin upward in direction of -arrow B-.

-- Remove the bracket for the central control module.

-- Disconnect the connectors -1, 2, 3, 4 and 6-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers in direction of -arrows- and guide the central control module -5- out of the mount.
