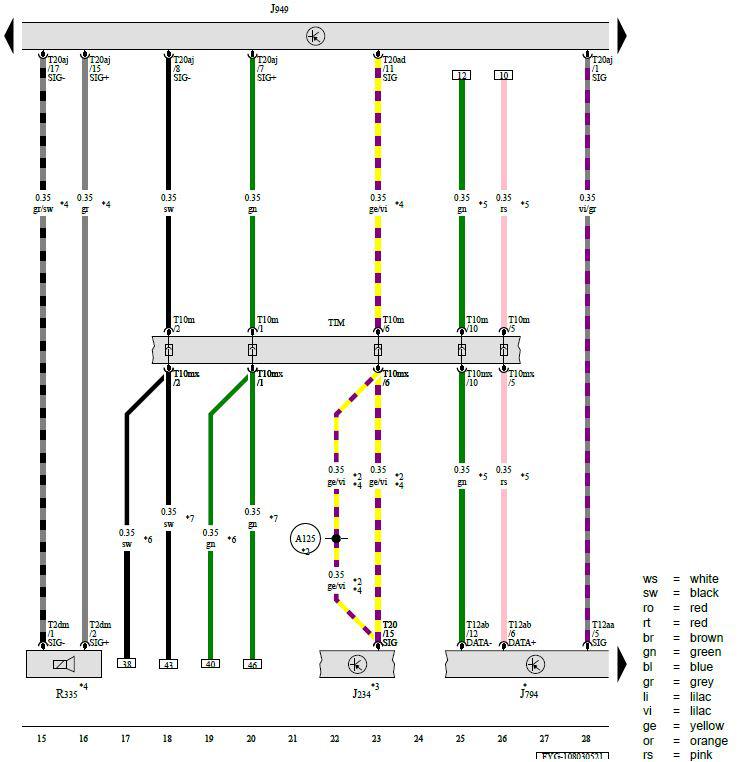

Airbag Control Module, Information Electronics Control Module 1, Control Module for Emergency Call Module and Communication Unit, Emergency Call Module Speaker

Courtesy of AUDI OF AMERICA, LLC

J234 -  Airbag Control Module

J794 -  Information Electronics Control Module 1

J949 -  Control Module for Emergency Call Module and Communication Unit

R335 -  Emergency Call Module Speaker

T2dm -  2-Pin Connector, Black

T10m -  10-Pin Connector, Black

T10mx -  10-Pin Connector, Black

T12aa -  12-Pin Connector, Blue

T12ab -  12-Pin Connector, Green

T20 -  20-Pin Connector, Yellow

T20ad -  20-Pin Connector, Black

T20aj -  20-Pin Connector, Naturally Cloudy

TIM -  Coupling Point in Interior, Center

A125 -  Crash Signal Connection (in Instrument Panel Wiring Harness)

* -  Refer to Applicable MMI (Information Electronics) Wiring Diagram

*2 -  Depending on Equipment

*3 -  Refer to Applicable Airbag Wiring Diagram

*4 -  For Vehicles with Emergency Call Function

*5 -  Ethernet Connection

*6 -  For LHD Vehicles

*7 -  For RHD Vehicles
