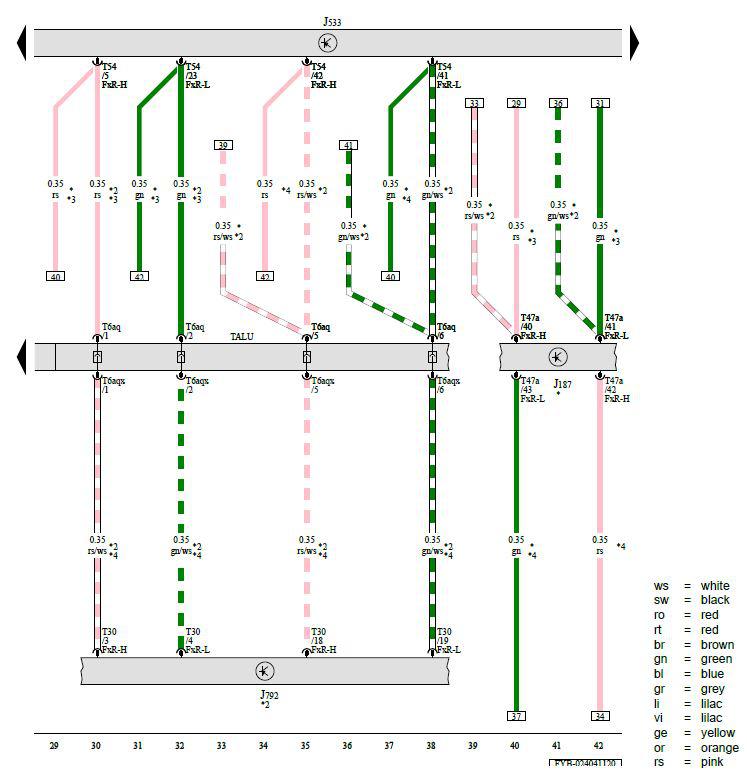

Differential Lock Control Module, Data Bus on Board Diagnostic Interface, Active Steering Control Module

Courtesy of AUDI OF AMERICA, LLC

J187 -  Differential Lock Control Module

J533 -  Data Bus on Board Diagnostic Interface

J792 -  Active Steering Control Module

T6aq -  6-Pin Connector, Green

T6aqx -  6-Pin Connector, Green

T30 -  30-Pin Connector, Black

T47a -  47-Pin Connector, Black

T54 -  54-Pin Connector, Black

TALU -  Coupling Point on Left A-Pillar, Bottom

* -  For Vehicles with Rear Final Drive - Sport Differential

*2 -  For Vehicles with Active Steering

*3 -  The Color of the Wires Depends on Vehicle Equipment

*4 -  Different Wire Color Possible
