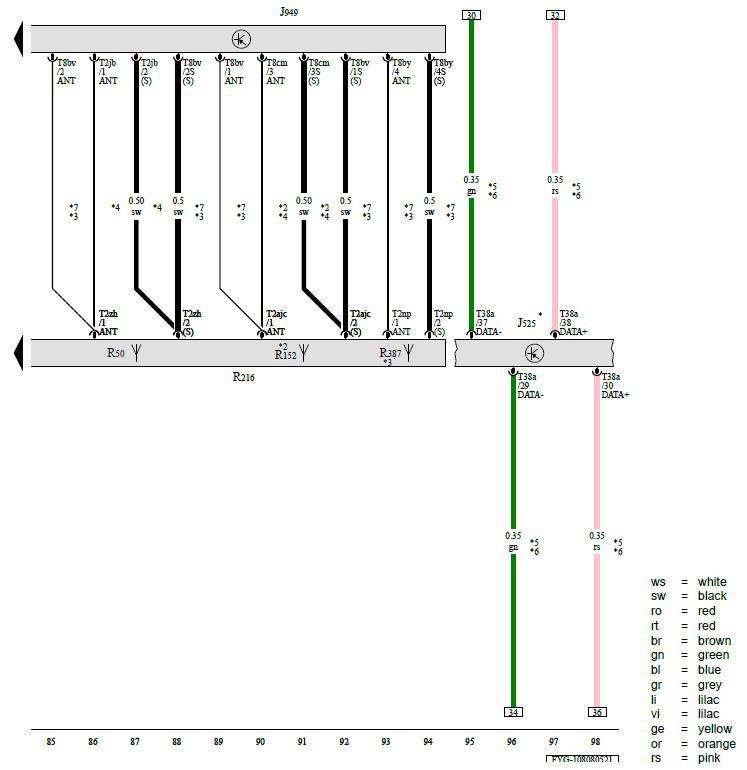

Digital Sound System Control Module, Control Module for Emergency Call Module and Communication Unit, GPS Antenna, Bluetooth Antenna, Roof Antenna
J525 - Digital Sound System Control Module
J949 - Control Module for Emergency Call Module and Communication Unit
R50 - GPS Antenna
R152 - Bluetooth Antenna
R216 - Roof Antenna
R387 - Antenna for External Communication with Vehicle
T2ajc - 2-Pin Connector, Black
T2jb - 2-Pin Connector, Pink
T2np - 2-Pin Connector, White
T2zh - 2-Pin Connector, Blue
T8bv - 8-Pin Connector, Light Blue
T8by - 8-Pin Connector, White
T8cm - 8-Pin Connector, White
T38a - 38-Pin Connector, Black
* - Refer to Applicable Sound System Wiring Diagram
*2 - For Vehicles with Cell Phone/Telephone
*3 - For Vehicles with External Vehicle Communication
*4 - For Vehicles Without External Vehicle Communication
*5 - For Vehicles with an Amplifier
*6 - Audio Bus Data Bus Wire
*7 - For Vehicles with China Equipment
