Airbag Control Module, Control Module for Adaptive Cruise Control, Data Bus on Board Diagnostic Interface, Control Module 2 for Adaptive Cruise Control, Control Module for Emergency Call Module and Communication Unit, Driver Assistance Systems Front Camera

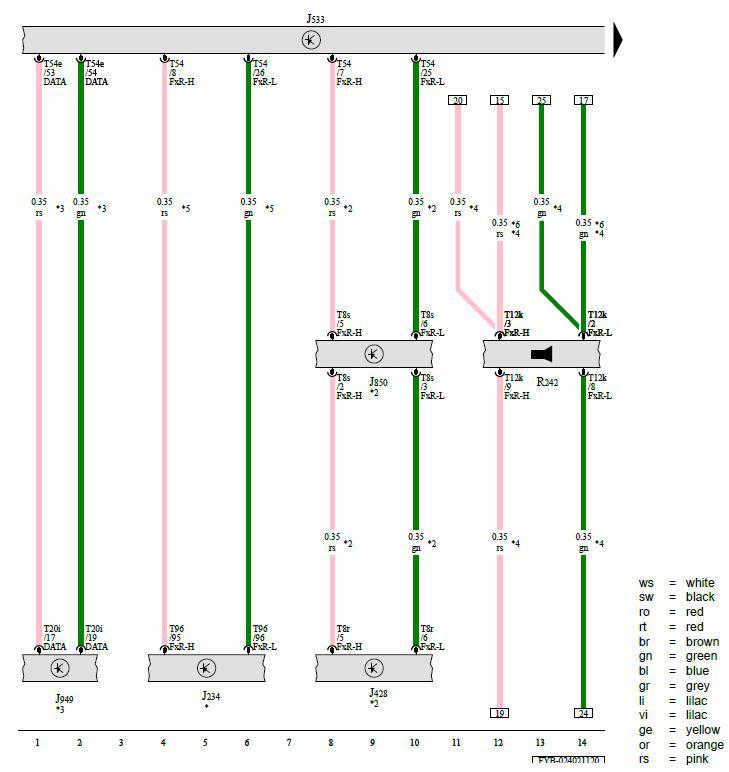

G00611741Courtesy of AUDI OF AMERICA, LLC

J234 -  Airbag Control Module

J428 -  Control Module for Adaptive Cruise Control

J533 -  Data Bus on Board Diagnostic Interface

J850 -  Control Module 2 for Adaptive Cruise Control

J949 -  Control Module for Emergency Call Module and Communication Unit

R242 -  Driver Assistance Systems Front Camera

T8r -  8-Pin Connector, Black

T8s -  8-Pin Connector, Black

T12k -  12-Pin Connector, Black

T20i -  20-Pin Connector, Black

T54 -  54-Pin Connector, Black

T54e -  54-Pin Connector, Gray

T96 -  96-Pin Connector, Black

* -  Refer to Applicable Airbag Wiring Diagram

*2 -  For Vehicles with Adaptive Cruise Control (ACC)

*3 -  For Vehicles with Emergency Call Module

*4 -  For Driver Assistance System

*5 -  The Color of the Wires Depends on Vehicle Equipment

*6 -  For Vehicles with Electronic Damping
