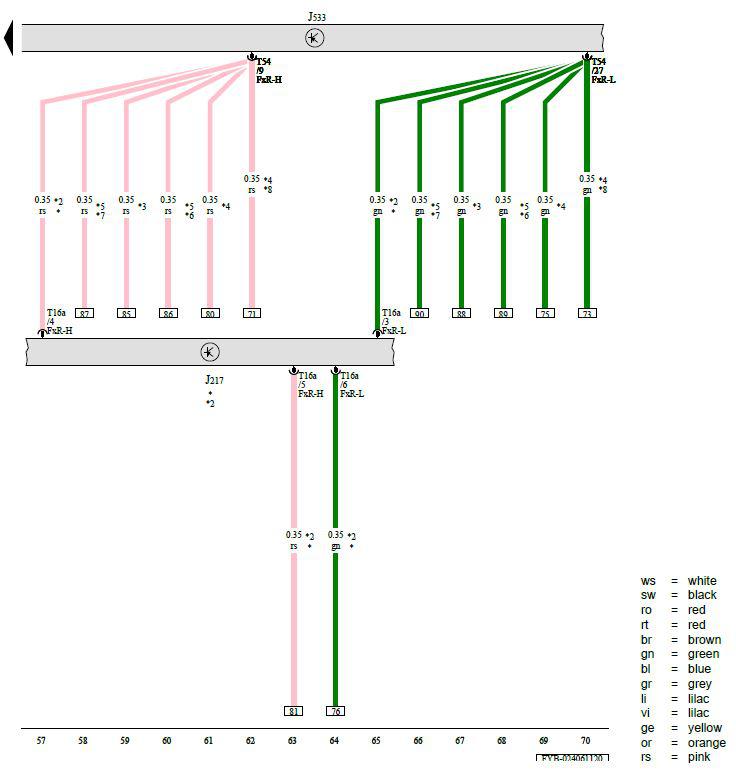

Transmission Control Module, Data Bus on Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J217 -  Transmission Control Module

J533 -  Data Bus on Board Diagnostic Interface

T16a -  16-Pin Connector, Black

T54 -  54-Pin Connector, Black

* -  For Vehicles Without All-Wheel Drive

*2 -  For Vehicles with Automatic Transmission

*3 -  For Vehicles with Automatic Transmission (DSG)

*4 -  For Vehicles with a Manual Transmission

*5 -  Data Bus Wire (Flexray Bus)

*6 -  For Vehicles with Hybrid Drive

*7 -  For Vehicles with 48 V Hybrid System

*8 -  For AWD Vehicles
