Close Range Communication Control Module 2 -J1170-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the center console insert. Refer to OVERVIEW - CENTER CONSOLE .

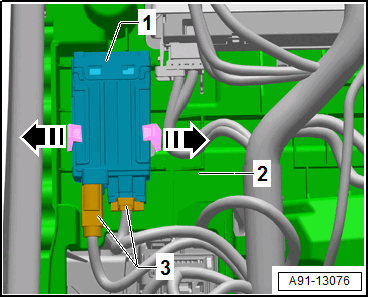

The Close Range Communication Control Module 2 -J1170- -1- is clipped into the center console.

Courtesy of AUDI OF AMERICA, LLC

-- Press the retainers in direction of -arrows- outward.

-- Remove the Close Range Communication Control Module 2 -J1170- -1- from the support insert -2-.

-- Release and disconnect the connectors -3-.
