Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, 9VS: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the luggage compartment partition. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .

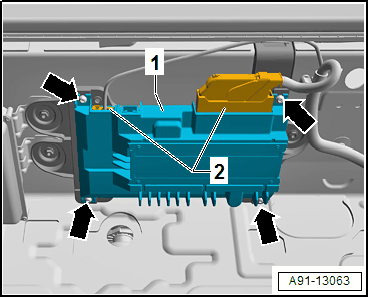

-- Remove the bolts -arrows- from the Digital Sound System Control Module -J525- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors -2- from the Digital Sound System Control Module -J525- -1-.

-- Insert the : VAS6223/9  -1- onto the MOST bus connector -2-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Digital Sound System Control Module -J525-.
