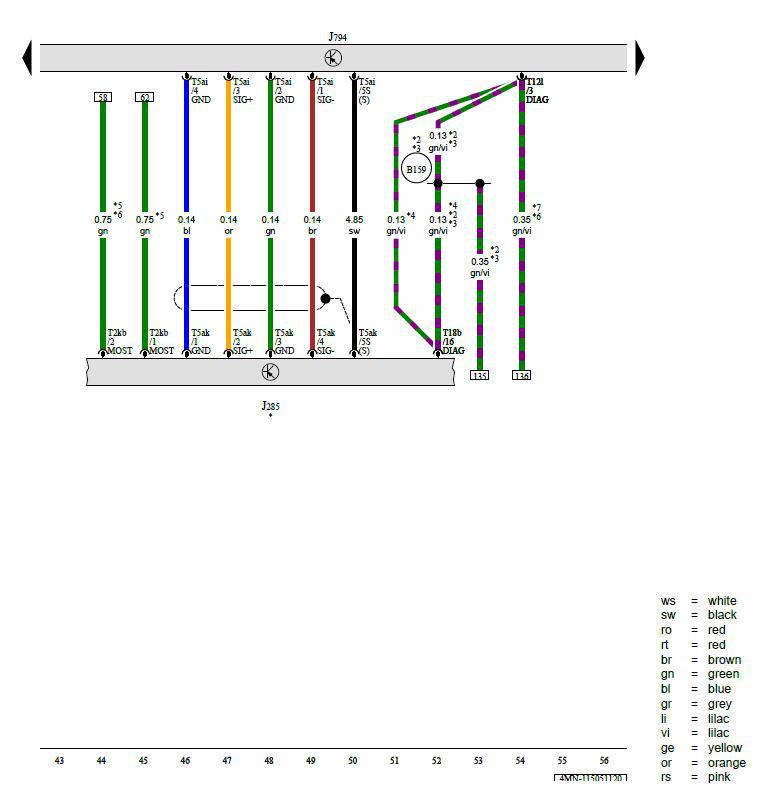

Instrument Cluster Control Module, Information Electronics Control Module 1
J285 - Instrument Cluster Control Module
J794 - Information Electronics Control Module 1
T2kb - 2-Pin Connector, Black
T5ai - 5-Pin Connector, White
T5ak - 5-Pin Connector, Black
T12l - 12-Pin Connector, Gray
T18b - 18-Pin Connector
B159 - Diagnostic Connection (in Interior Wiring Harness)
* - Refer to Applicable Wiring Diagram for Instrument Cluster
*2 - For Vehicles with Windshield Projection
*3 - For Vehicles with TV Tuner
*4 - For Vehicles with Standard Sound System
*5 - Refer to Applicable Wiring Diagram for Infotainment Most Bus
*6 - Depending on Equipment
*7 - For Vehicles with Bose Sound System
