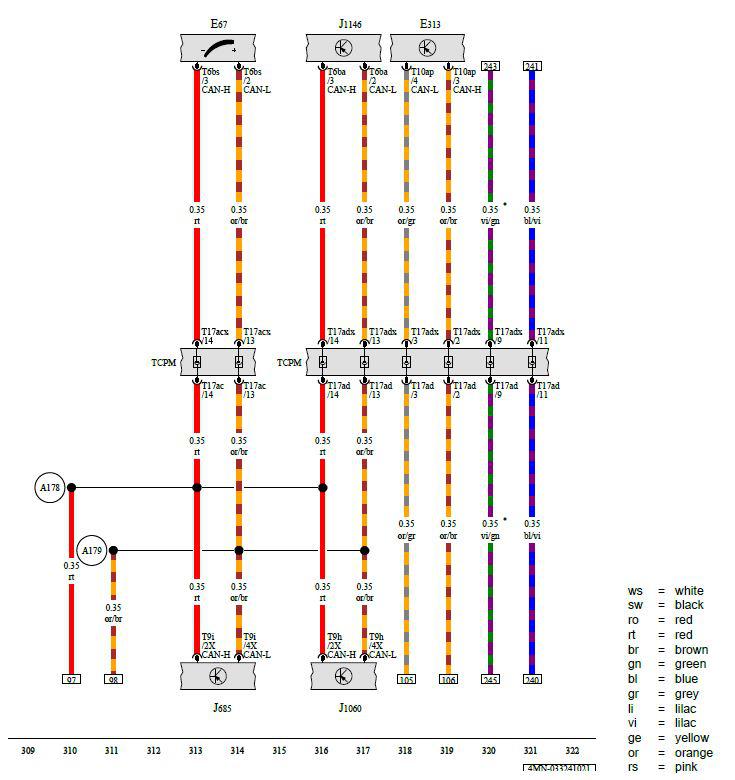

Driver Volume Control, Selector Lever, Front Information Display Control Head, Front Information Display Control Head 2, Mobile Device Charger 1

Courtesy of AUDI OF AMERICA, LLC

E67 -  Driver Volume Control

E313 -  Selector Lever

J685 -  Front Information Display Control Head

J1060 -  Front Information Display Control Head 2

J1146 -  Mobile Device Charger 1

T6ba -  6-Pin Connector, Black

T6bs -  6-Pin Connector, Red

T9h -  9-Pin Connector, White

T9i -  9-Pin Connector, Black

T10ap -  10-Pin Connector, Black

T17ac -  17-Pin Connector, Red

T17acx -  17-Pin Connector, Red

T17ad -  17-Pin Connector, Black

T17adx -  17-Pin Connector, Black

TCPM -  Coupling Point on Instrument Panel, Center

A178 -  Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)

A179 -  Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)

* -  For Vehicles with Ambient Lighting
