Overview - Emissions Control System, Vehicles With Catalytic Converter: Notes

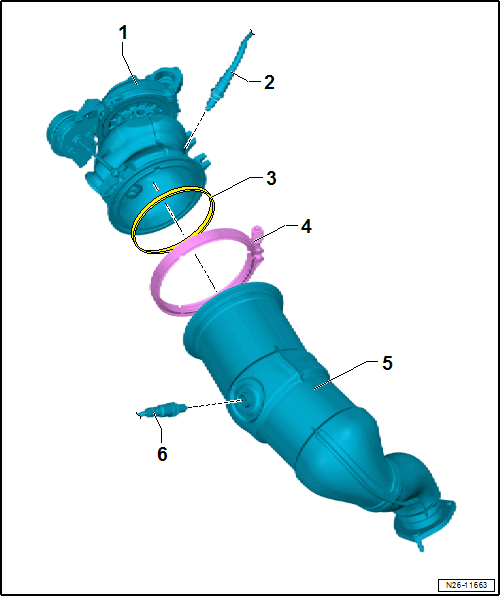

Fig 1: Exploded View Of Emissions Control System, Vehicles With Catalytic Converter

Courtesy of AUDI OF AMERICA, LLC

1. Turbocharger
   • Overview. Refer to OVERVIEW - TURBOCHARGER .
2. Heated Oxygen Sensor -G39-
   • Overview. Refer to OVERVIEW - HEATED OXYGEN SENSOR .
3. Seal
   • Replace after removing.
4. Screw-Type Clamp
   • 7 Nm
   • Replace after removing.

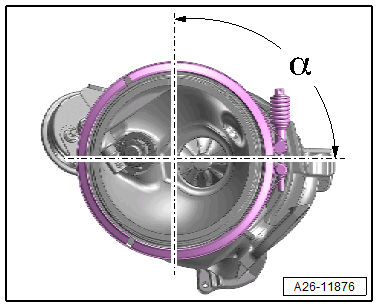

   • Installation position. Refer to Figure.
5. Catalytic Converter
   • Removing and Installing. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .
6. Oxygen Sensor After Catalytic Converter -G130-
   • Overview. Refer to OVERVIEW - HEATED OXYGEN SENSOR .
