Lane Change Assistance Control Module -J769- / -J770-, Removing And Installing: Removing

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

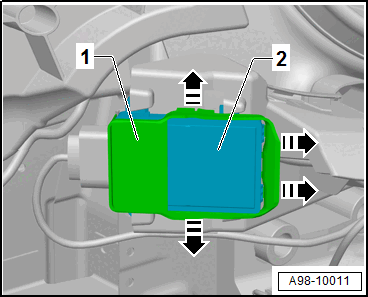

-- Release the retainers on the shield -1- in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the shield -1- from the lane change assistance control module -2-.

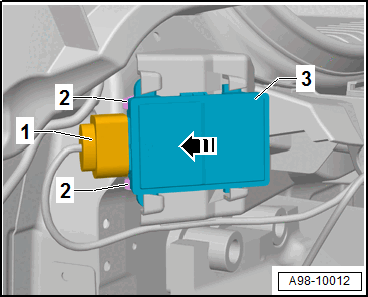

-- Release and disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs -2- at the center of the bumper cover mount.

-- Remove the lane change assistance control module -3- from the bumper cover mount -arrow-.
