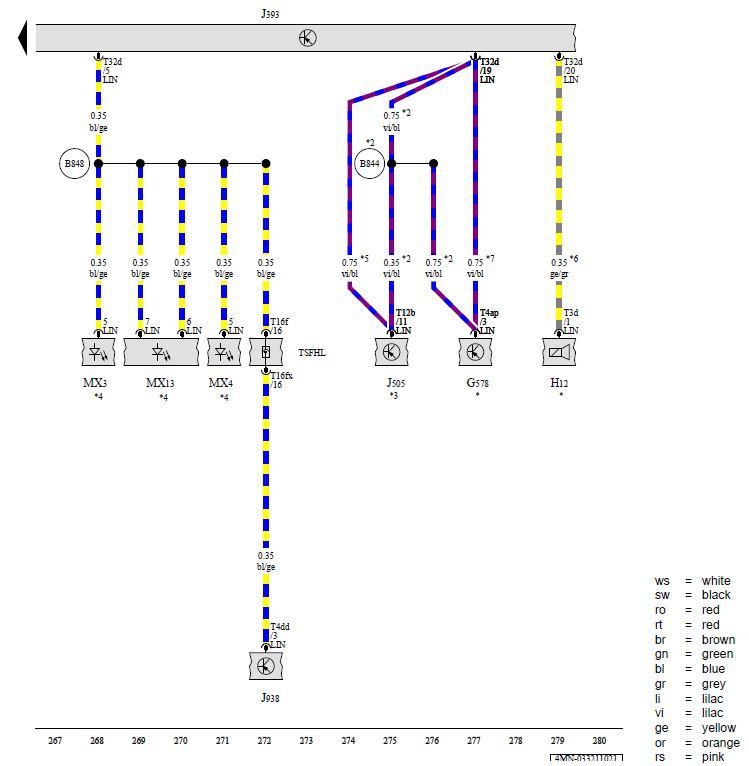

Anti-Theft Alarm System Sensor, Alarm Horn, Comfort System Central Control Module, Windshield Defogger Control Module, Power Rear Lid Opening Control Module, Left Tail Lamp, Right Tail Lamp, Center Tail Lamp
G578 - Anti-Theft Alarm System Sensor
H12 - Alarm Horn
J393 - Comfort System Central Control Module
J505 - Windshield Defogger Control Module
J938 - Power Rear Lid Opening Control Module
MX3 - Left Tail Lamp
MX4 - Right Tail Lamp
MX13 - Center Tail Lamp
T3d - 3-Pin Connector, Black
T4ap - 4-Pin Connector, Black
T4dd - 4-Pin Connector, Black
T12b - 12-Pin Connector, Black
T16f - 16-Pin Connector, Brown
T16fx - 16-Pin Connector, Brown
T32d - 32-Pin Connector, Naturally Cloudy
TSFHL - Coupling Point on Left Rear Bumper
B844 - LIN Bus Connection 10 (in Main Wiring Harness)
B848 - LIN Bus Connection 12 (in Main Wiring Harness)
* - Refer to the Applicable Convenience System and Anti-Theft Alarm System Wiring Diagram
*2 - For Vehicles with Anti-Theft Alarm System and Interior Monitoring and Towing Prevention
*3 - Refer to Applicable Windshield Defogger Wiring Diagram
*4 - Refer to Applicable Tail Lamp Wiring Diagram
*5 - For Vehicles with Windshield Defogger
*6 - For Vehicles with Anti-Theft Alarm System
*7 - For Vehicles with Anti-Theft Alarm System and Towing Prevention
