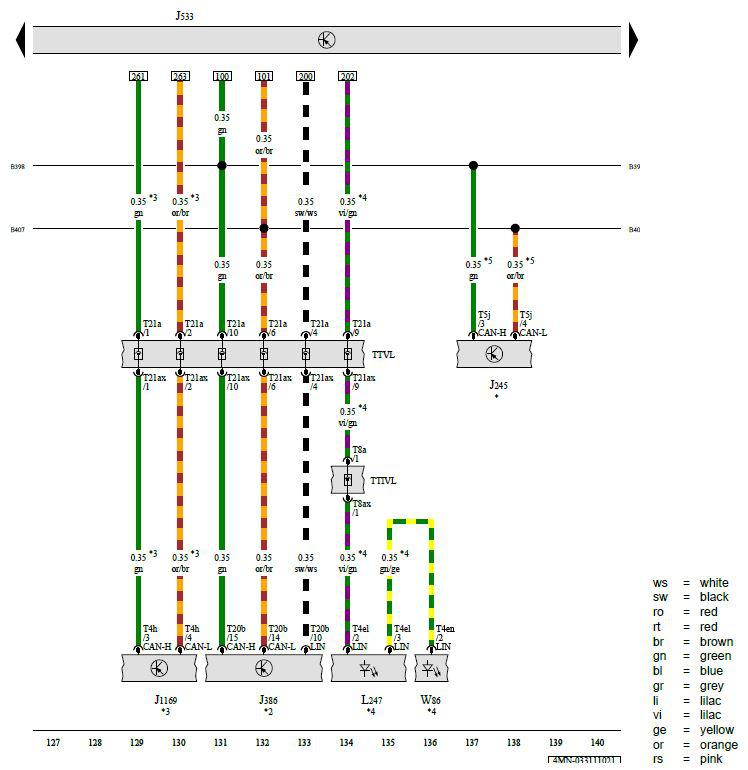

Sunroof Control Module, Driver Door Control Module, Data Bus on Board Diagnostic Interface, Near Field Communication Control Module, Driver Side Door Contour Illumination Lamp, Driver Side Door Ambient Lighting Lamp
J245 - Sunroof Control Module
J386 - Driver Door Control Module
J533 - Data Bus on Board Diagnostic Interface
J1169 - Near Field Communication Control Module
L247 - Driver Side Door Contour Illumination Lamp
T4el - 4-Pin Connector, Black
T4en - 4-Pin Connector, Black
T4h - 4-Pin Connector, White
T5j - 5-Pin Connector, Black
T8a - 8-Pin Connector, Black
T8ax - 8-Pin Connector, Black
T20b - 20-Pin Connector, White
T21a - 21-Pin Connector, Black
T21ax - 21-Pin Connector, Black
TTIVL - Coupling Point in Left Front Door
TTVL - Left Front Door Coupling Point
W86 - Driver Side Door Ambient Lighting Lamp
B398 - Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
* - Refer to Applicable Wiring Diagram
*2 - Refer to Applicable Driver Door Wiring Diagram
*3 - Optional Equipment
*4 - For Vehicles with Ambient Lighting
*5 - For Vehicles with a Sunroof
