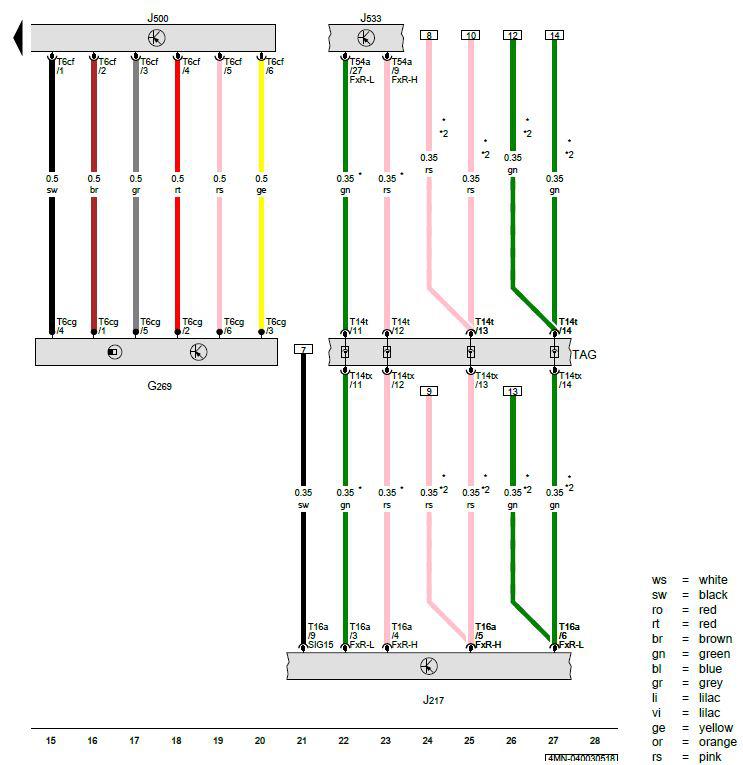

Steering Torque Sensor, Transmission Control Module, Power Steering Control Module, Data Bus on Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

G269 -  Steering Torque Sensor

J217 -  Transmission Control Module

J500 -  Power Steering Control Module

J533 -  Data Bus on Board Diagnostic Interface

T6cf -  6-Pin Connector, Black

T6cg -  6-Pin Connector, Black

T14t -  14-Pin Connector, Black

T14tx -  14-Pin Connector, Black

T16a -  16-Pin Connector, Black

T54a -  54-Pin Connector, Black

TAG -  Automatic Transmission Coupling Point

* -  Data Bus Wire (Flexray Bus)

*2 -  Depending on Equipment
