Outer Window Shaft Strip, Removing And Installing: Installing

TIP:

The lower edge of the window shaft strip can be coated with tire mounting paste for installation.

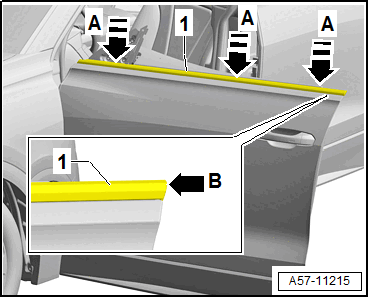

-- Align the window shaft strip -1- flush to the door body in direction of -arrow B- and attach it on the door flange all the way to the A-pillar in direction of -A arrows-.

Courtesy of AUDI OF AMERICA, LLC

Further installation is the reverse order of removal.
