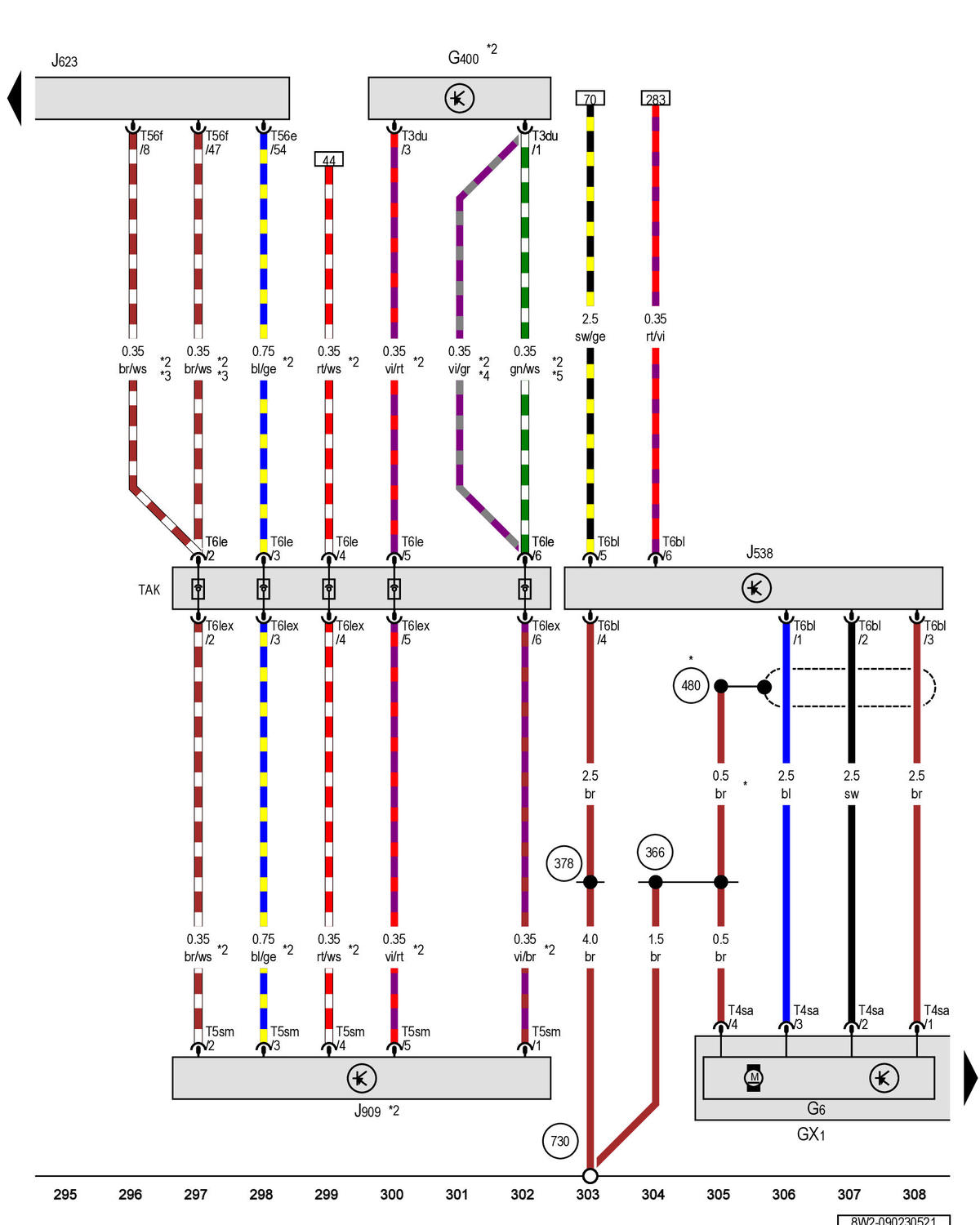

Fuel Delivery Unit, Fuel Tank Pressure Sensor, Fuel Pump Control Module, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module

Courtesy of AUDI OF AMERICA, LLC

GX1

Fuel Delivery Unit

G6

Transfer Fuel Pump Type:BT, Slpdok:, Aim:BTG6

G400

Fuel Tank Pressure Sensor

J538

Fuel Pump Control Module Type:BT, Slpdok:, Aim:BTJ538

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front Type:BT, Slpdok:, Aim:BTJ623

J909

Fuel Tank Leak Detection Control Module Type:BT, Slpdok:, Aim:BTJ909

T3du

3-Pin Connector, Black

T4sa

4-Pin Connector, Black

T5sm

5-Pin Connector, Black

T6bl

6-Pin Connector, Black

T6le

6-Pin Connector, Green

T6lex

6-Pin Connector, Green

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

TAK

Fuel Tank Coupling Point

366

Ground Connection 1 (in Main Wiring Harness)

378

Ground Connection 13 (in Main Wiring Harness)

480

Ground Connection (in Fuel Tank Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing Type:VB, Slpdok:, Aim:VB730

*

Sedan

*2

For USA Only

*3

Depending on Equipment

*4

Omitted as a Running Change

*5

Running Change
