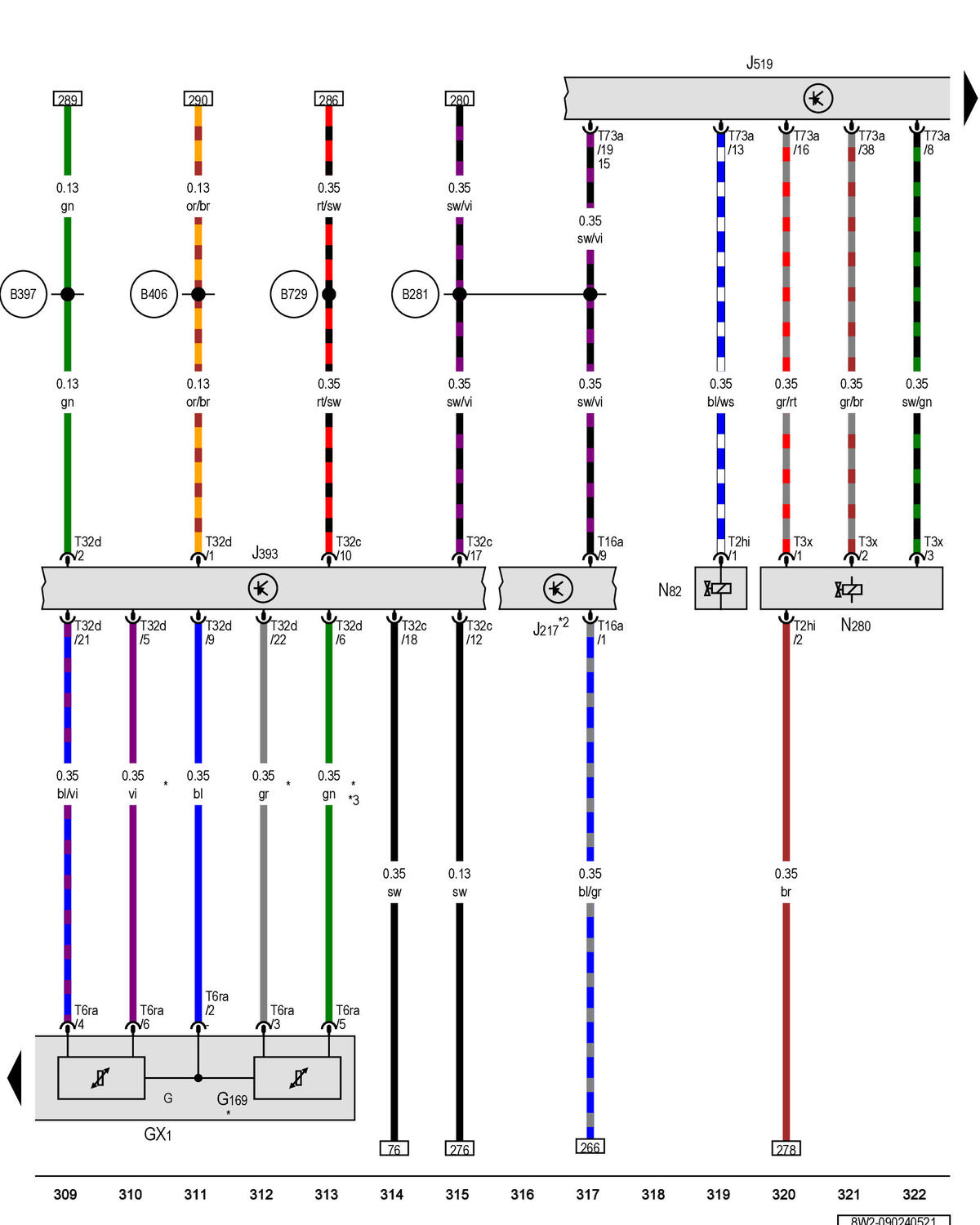

Fuel Delivery Unit, Transmission Control Module, Comfort System Central Control Module, Vehicle Electrical System Control Module, Coolant Shut-Off Valve, A/C Compressor Regulator Valve

Courtesy of AUDI OF AMERICA, LLC

G

Fuel Level Sensor Type:BT, Slpdok:, Aim:BTG

GX1

Fuel Delivery Unit

G169

Fuel Level Sensor 2 Type:BT, Slpdok:, Aim:BTG169

J217

Transmission Control Module Type:BT, Slpdok:, Aim:BTJ217

J393

Comfort System Central Control Module Type:BT, Slpdok:, Aim:BTJ393

J519

Vehicle Electrical System Control Module Type:BT, Slpdok:, Aim:BTJ519

N82

Coolant Shut-Off Valve Type:BT, Slpdok:, Aim:BTN82

N280

A/C Compressor Regulator Valve

T2hi

2-Pin Connector, Black

T3x

3-Pin Connector, Black

T6ra

6-Pin Connector, Black

T16a

16-Pin Connector, Black

T32c

32-Pin Connector, Black

T32d

32-Pin Connector, Blue

T73a

73-Pin Connector, Black

B281

Positive Connection 5 (15a) (in Main Wiring Harness)

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B729

Connection 50 (in Main Wiring Harness) 1

*

Depending on Equipment

*2

Refer to Applicable Wiring Diagram for Automatic Transmission

*3

Through July 2018
