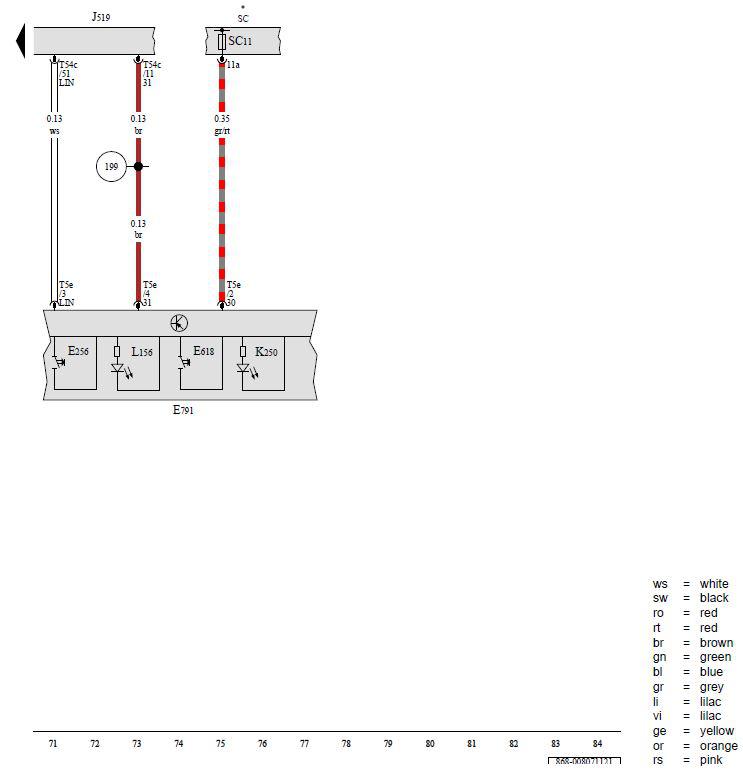

ASR/ESP Button, Hill Descent Control Button, Control Unit 1 for Driving and Convenience Functions, Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

E256 -  ASR/ESP Button

E618 -  Hill Descent Control Button

E791 -  Control Unit 1 for Driving and Convenience Functions

J519 -  Vehicle Electrical System Control Module

K250 -  Hill Descent Control Indicator Lamp

L156 -  Switch Illumination Bulb

SC -  Fuse Panel C

SC11 -  Fuse 11 (On Fuse Panel C)

T5e -  5-Pin Connector, Brown

T54c -  54-Pin Connector, Black

199 -  Ground Connection 3 (in Instrument Panel Wiring Harness)

* -  Refer to Applicable Wiring Diagram for Fuse Positions
