Bleed Cooling System.

Procedure

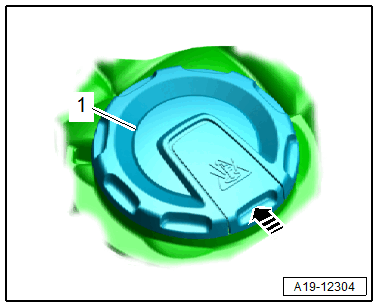

Fig 1: Coolant Expansion Tank
GWWA19-12304Courtesy of AUDI OF AMERICA, LLC

-- Tighten the cap -1- on the coolant expansion tank until it locks into place.

-- Start the engine.

Duration Engine Speed Requirement
Three minutes 2000 RPM
  • A/C system "OFF", the LED in the AC  button does not turn on
  • Heater on "HI", blower speed as low as possible (= 0)
Until both large coolant hoses on the radiator are warm Idle
  • A/C system "OFF"
  • Heater "HI"
2 Minutes 2000 RPM
  • A/C system "OFF"
  • Heater "HI"

-- Turn off the engine.

-- Install the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

Continuation of the Filling Procedure:

-- Check the coolant level and fill with coolant. Refer to COOLANT LEVEL, CHECKING AND FILLING .
