Front A/C Display Control Head -E87-, Removing And Installing, Q5: Installing

Courtesy of AUDI OF AMERICA, LLC

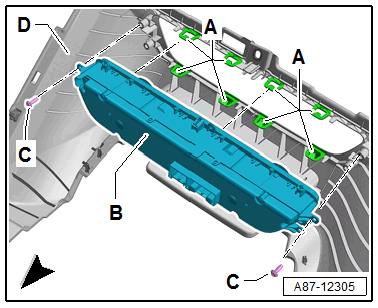

-- Secure the Front A/C Display Control Head -E87- -B- on the guides for the trim -D-.

-- Install the Front A/C Display Control Head -E87- -B- all the way in the trim -D- and the tabs -A- click into place.

-- Install the bolts -C-.

Reinstall in reverse order of removal. Note the following:

-- After installing the Front A/C Display Control Head -E87- check the DTC memory and if necessary erase. Use the Vehicle Diagnostic Tester.

-- If the Front A/C Display Control Head -E87- is replaced, complete the test plan using the Vehicle Diagnostic Tester.

Tightening Specification
