Windshield Washer Fluid Level Sensor, Removing And Installing: Removing

-- Remove the right front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Place a drip tray under the washer fluid reservoir.

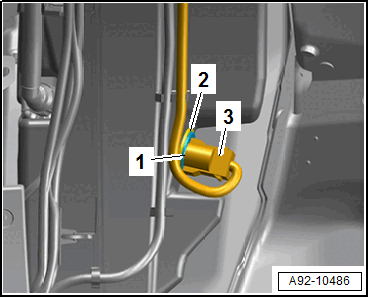

-- Disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the windshield washer fluid level sensor -1- from the windshield washer fluid reservoir.
