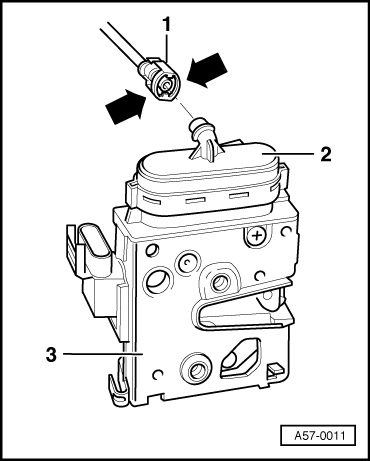

Fig. 1 Removing Connector
Courtesy of AUDI OF AMERICA, LLC
|
NOTE:
The connectors for the activators cannot be removed by pulling; the locator clip must be disengaged first.
-- Squeeze clip (arrows) to disengage locator.
-- Remove vacuum line.
- Vacuum line connector
- Activator
- Lock assembly
