Central Locking System Component Locations, From 1995: Notes

Beginning with 1995 MY production the routing of vacuum lines for the central locking system was changed.

Courtesy of AUDI OF AMERICA, LLC

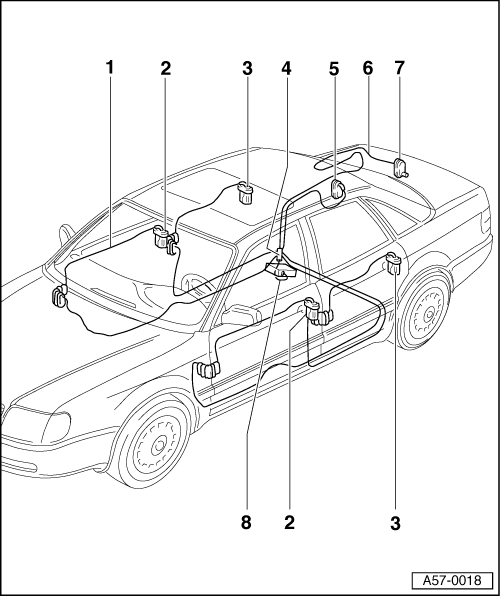

1. Vacuum Line
2. Activator, Right/Left Front Doors
3. Activator, Right/Left Rear Doors
4. Multiple Connector
   • The multiple connector is permanently attached to vacuum lines except for rear lid line.
   • Removing rear lid vacuum line, refer to Fig. 1 Removing Connector .
5. Activator, Gas Flap
6. Vacuum Line, Rear Lid
7. Activator, Rear Lid
8. Pump for Central Locking System
