Door Component Carrier, Adjusting: Notes

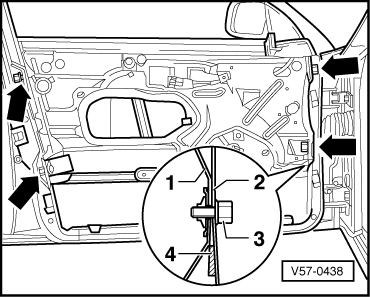

Adjusting wedge -4- must always be installed when adjusting door component carrier.
Door shell must be adjusted.
-- Loosen bolts -3- -arrows-.
-- Close door.
-- One mechanic presses carrier for door components against roof and pillar. Carrier must be slightly overpressured (return forces through rubber seal), while second mechanic first slightly tightens upper bolts, then slides adjusting wedge -4- upward until it contacts surfaces of door shell -2- and door component carrier -1-.
-- Tighten bolts to 30 Nm (22 ft lb).
-- Check reference dimension. Refer to Dimensions of Door Component Carrier .
-- By sliding adjusting wedge -4-, door tilt in B-pillar area can be adjusted. If door protrudes too far in rear area, e.g. at bottom, adjusting wedge must be pushed further upward. This causes door to tilt toward vehicle center at bottom and outward at top.
