Doors, Adjusting: Notes

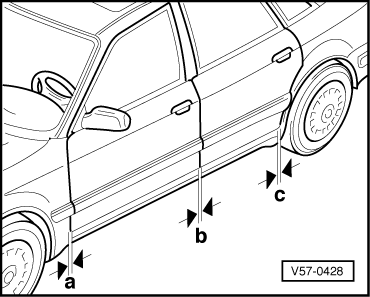

Gap Dimensions -a-, -b-, -c-
-- Loosen door hinge at A-pillar.
-- Adjust gap by moving door with hinges.
Dimension -a- = 4 + 1 mm (0.16 + 0.04 in.)
Dimension -b- = 4.5 + 1 mm (0.177 + 0.04 in.)
Dimension -c- = 3.5 + 1 mm (0.138 + 0.04 in.)
Body Contour Adjustment
-- Loosen hinges (extra-large holes in hinge at the point where hinge fastens to A/B-pillar).
-- Adjust by moving locking wedge. Refer to Adjusting Locking Wedge .
