Power Window Regulator Assembly Overview

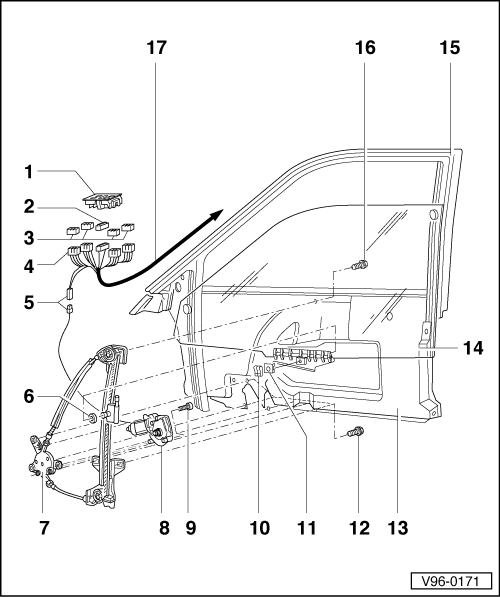

Fig 1: Power Window Regulator Assembly Exploded View

Courtesy of AUDI OF AMERICA, LLC

Console
Lockout Switch for Rear Window Regulators
- Refer to Removal and Installation .
Operating Switches for Window Regulators
- Refer to Removal and Installation .
Connectors for Console Switches
- Refer to Description and Operation .
Window Regulator Connector
- Refer to Description and Operation .
Washer
- Configuration and installation position, refer to WINDOW REGULATOR AND DOOR GLASS .
Window Regulator
- Removing and installing on door component carrier, refer to WINDOW REGULATOR AND DOOR GLASS .
Window Regulator Motor
- Refer to Removal and Installation .
Bolt
- 4.5 Nm (44 in lb)
Locking Clip for Door Glass
- Removing and configuration, refer to WINDOW REGULATOR AND DOOR GLASS .
Washer
- Removing and configuration, refer to WINDOW REGULATOR AND DOOR GLASS .
Regulator Mounting Bolt
- 10 Nm (7 ft lb)
Door Component Carrier
- Different securing points on manual/power window regulators. Refer to Window Regulator Mounting Points .
Front Left Door Glass
- Removing and installing, refer to WINDOW REGULATOR AND DOOR GLASS .
Window Channel (Seal)
Regulator Mounting Bolt
- 10 Nm (7 ft lb)
Wiring Harness
- Refer to Description and Operation .
