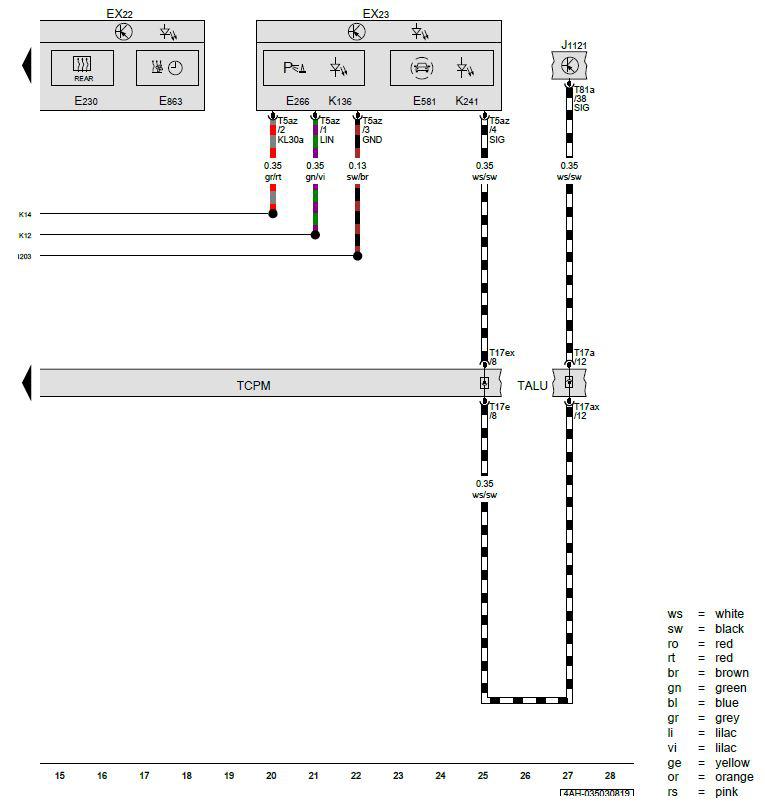

Switch Module in Instrument Panel, Center, Center Console Switch Module 1, Driver Assistance Systems Control Module
EX22 - Switch Module in Instrument Panel, Center
EX23 - Center Console Switch Module 1
E230 - Rear Window Defogger Button
E266 - Parking Aid Button
E581 - Parallel Parking Assistance Button
E863 - Auxiliary Coolant Heater Button
J1121 - Driver Assistance Systems Control Module
K136 - Parking Aid Indicator Lamp
K241 - Parallel Parking Assistance Indicator Lamp
T5az - 5-Pin Connector, Black
T17a - 17-Pin Connector, White
T17ax - 17-Pin Connector, White
T17e - 17-Pin Connector, Black
T17ex - 17-Pin Connector, Black
T81a - 81-Pin Connector, Black
TALU - Coupling Point on Left A-Pillar, Bottom
TCPM - Coupling Point on Instrument Panel, Center
1203 - Ground Connection (in Center Console Wiring Harness)
K12 - LIN Bus Connection (in Center Console Wiring Harness)
K14 - Connection (30) (in Center Console Wiring Harness)
