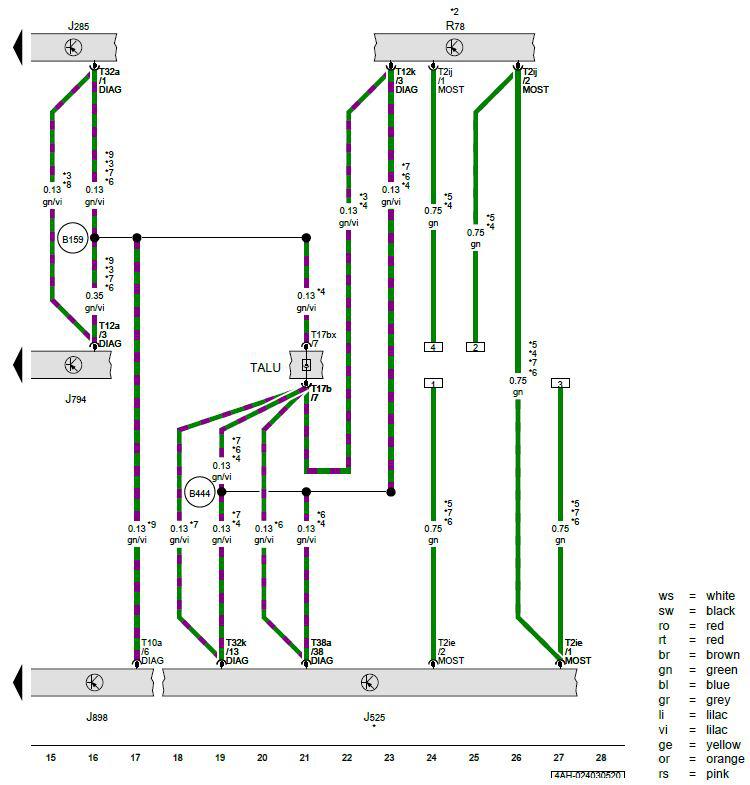

Instrument Cluster Control Module, Digital Sound System Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module, TV Tuner

Courtesy of AUDI OF AMERICA, LLC

J285 -  Instrument Cluster Control Module

J525 -  Digital Sound System Control Module

J794 -  Information Electronics Control Module 1

J898 -  Windshield Projection Head Up Display Control Module

R78 -  TV Tuner

T2ie -  2-Pin Connector, Black

T2ij -  2-Pin Connector, Black

T10a -  10-Pin Connector, Black

T12a -  12-Pin Connector, Gray

T12k -  12-Pin Connector, Black

T17b -  17-Pin Connector, Blue

T17bx -  17-Pin Connector, Blue

T32a -  32-Pin Connector, Gray

T32k -  32-Pin Connector, Black

T38a -  38-Pin Connector, Black

TALU -  Coupling Point on Left A-Pillar, Bottom

B159 -  Diagnostic Connection (in Interior Wiring Harness)

B444 -  OBD Connection 1 (in Main Wiring Harness)

* -  Refer to Applicable Sound System Wiring Diagram

*2 -  Refer to the Applicable TV Tuner Wiring Diagram

*3 -  For Vehicles with Standard Sound System

*4 -  For Vehicles with TV Tuner

*5 -  Fiber Optic Cable

*6 -  For Vehicles with Bose Sound System

*7 -  For Vehicles with Bang & Olufsen Sound System

*8 -  For Vehicles with MMI

*9 -  For Vehicles with Windshield Projection
