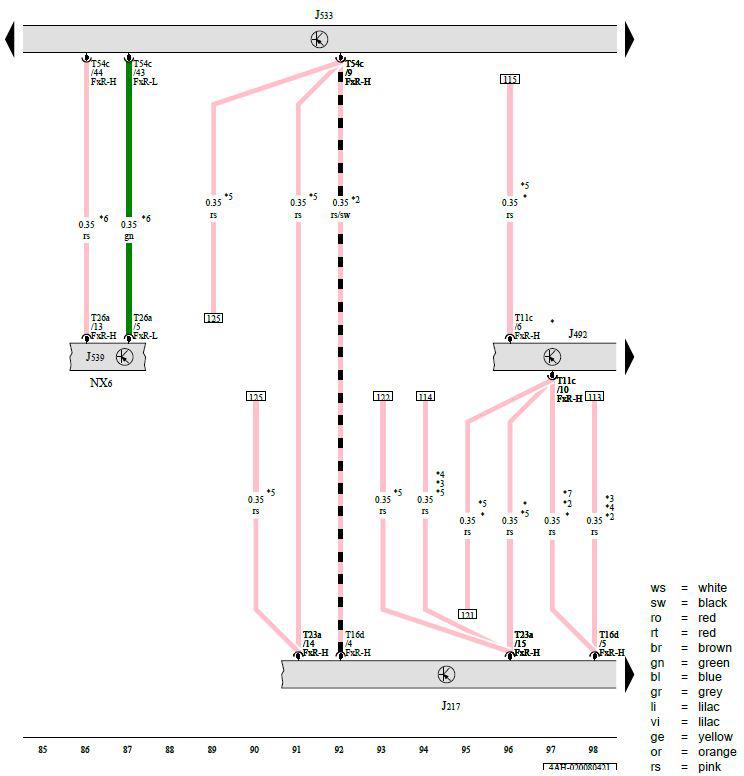

Transmission Control Module, All-Wheel Drive Control Module, Data Bus on Board Diagnostic Interface, Brake Booster

Courtesy of AUDI OF AMERICA, LLC

J217 -  Transmission Control Module

J492 -  All-Wheel Drive Control Module

J533 -  Data Bus on Board Diagnostic Interface

J539 -  Brake Booster Control Module

NX6 -  Brake Booster

T11c -  11-Pin Connector, Black

T16d -  16-Pin Connector, Black

T23a -  23-Pin Connector, Black

T26a -  26-Pin Connector, Black

T54c -  54-Pin Connector, Black

* -  For AWD Vehicles

*2 -  For Vehicles with 8-Speed Automatic Transmission

*3 -  For Vehicles Without All-Wheel Drive

*4 -  For Vehicles with Electromechanical Power Steering

*5 -  Depending on Equipment

*6 -  For Vehicles with 48 V System

*7 -  Omitted as a Running Change
