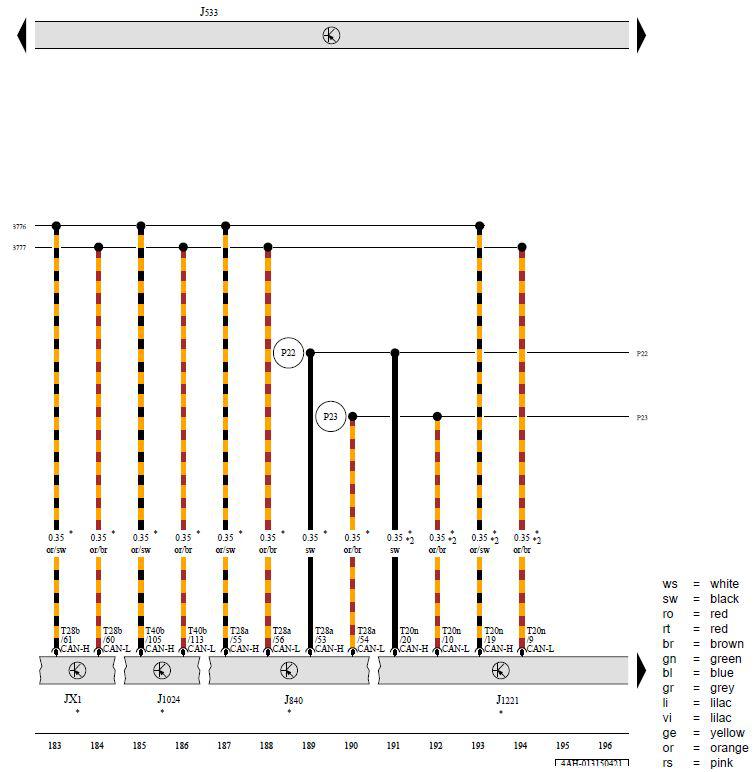

Electric Drive Power and Control Electronics, Data Bus on Board Diagnostic Interface, Battery Regulation Control Module, Thermal Management Control Module, Telematics Interface Control Module

Courtesy of AUDI OF AMERICA, LLC

JX1 -  Electric Drive Power and Control Electronics

J533 -  Data Bus on Board Diagnostic Interface

J840 -  Battery Regulation Control Module

J1024 -  Thermal Management Control Module

J1221 -  Telematics Interface Control Module

T20n -  20-Pin Connector, Brown

T28a -  28-Pin Connector, Black

T28b -  28-Pin Connector, Black

T40b -  40-Pin Connector, Black

B776 -  Hybrid CAN Bus High Connection 1 (in Main Wiring Harness)

B777 -  Hybrid CAN Bus Low Connection 1 (in Main Wiring Harness)

P22 -  CAN Bus High-Voltage Battery High Connection (in Main Wiring Harness)

P23 -  CAN Bus High-Voltage Battery Low Connection (in Main Wiring Harness)

* -  For Vehicles with Hybrid Drive

*2 -  For Vehicles with China Equipment
