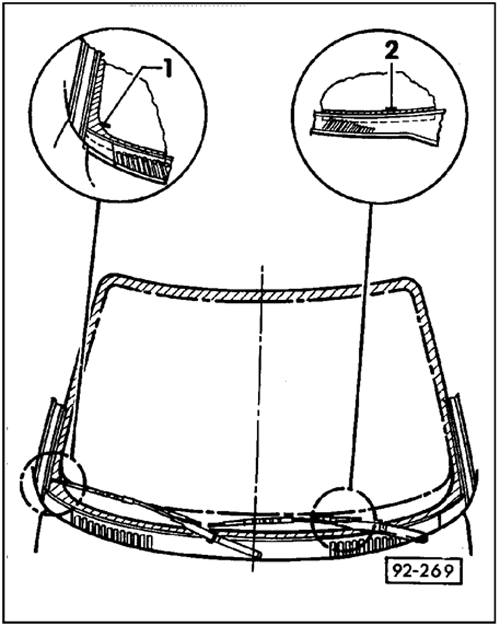

Fig. 1 Wiper arms, adjusting
 Courtesy of AUDI OF AMERICA, LLC
|
NOTE:
The wiper motor must be in parked position before installing arms.
-- Position edge of wiper blade on passenger side arm at -1-.
-- Tighten wiper arm.
-- Position edge of wiper blade on driver's side arm at -2-.
-- Tighten wiper arm.
