Driver Assistance Systems Control Module -J1121-, REMOVING AND INSTALLING: Removing
-- Lay the carpet at the left front of the center console. Refer to CARPET, REMOVING AND INSTALLING .
-- Remove the vehicle interior footwell vent. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
-- Loosen the air duct to the footwell vent and lift it upward as much as possible.

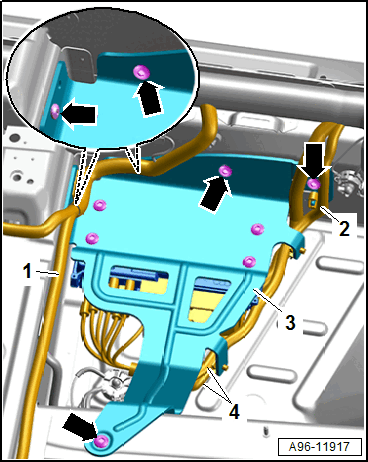

-- Remove the screws -arrows-.
-- Free up the wires -1, 2, and 4-.
-- Guide out the mount -3- with the driver assistance systems control module and lay it aside.

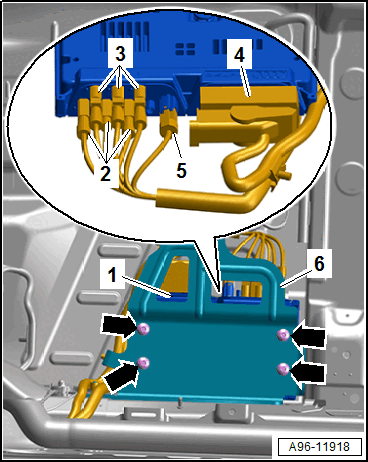

-- Disconnect the connectors -2 through 5-.
-- Remove the screws -arrows-.
-- Remove the mount -6- from the driver assistance systems control module -1-.
