Overview - Navigation System, MMI Navigation Plus, I8T+7UG

• Information Electronics Control Module 1 -J794- Behind the Glove Compartment
• Front Information Display Control Head -J685-, 10.1 Inch Display in the Center of the Instrument Panel
• Front Information Display Control Head 2 -J1060-, 8.6 Inch Display in the Front Center Console
• Instrument Cluster Control Module -J285-, display in the instrument cluster, Audi Virtual Cockpit, 9S8
• DVD Player -R7- in glove compartment, 7D5
• USB Distributor -R293- in the Front Center Console Storage Compartment, two USB ports for data and charging, UF7
• Radio -R- integrated in the Information Electronics Control Module 1 -J794-
• Sound system: standard sound system, 9VD
• Video input for rearview camera system, KA2
• Bluetooth Hands-Free Calling, 9ZX
• Wi-Fi hotspot, EL3
• Voice recognition system, QH1

Optional

• Digital Radio -R147- integrated in the Information Electronics Control Module 1 -J794-, only Europe/Rest of World and QV3
• Radio System, Satellite -R146- integrated in the Information Electronics Control Module 1 -J794-, only USA and QV3
• USB Distributor -R293- in the Front Center Console Storage Compartment, 2 USB ports, SIM card, SD card, ASI, UI2/UE7/IU1
• TV Tuner -R78- in the center of the luggage compartment at the rear, QU1/QV1/Q0A/Q0B
• TV Card Reader -R204- in the luggage compartment on the left rear side in the center, Q0A/Q0B
• Digital Sound System Control Module -J525- on the left rear side of the luggage compartment, 9VS/8RF only
• USB Connection 1 -U41- in the Rear Center Console, UF8
• Sound system: premium sound system, 9VS
• Sound system: advanced sound system, 8RF
• Audi phone box light, 9ZV
• Audi phone box, 9ZE
• Emergency call system, IW1/IW3/IW5
• Multifunction Steering Wheel

ASI - Audi Smartphone Integration

Courtesy of AUDI OF AMERICA, LLC

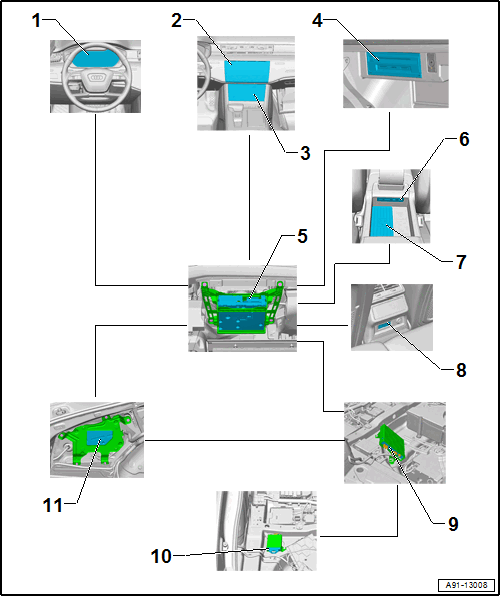

1. Instrument Cluster Control Module -J285-, Audi Virtual Cockpit
2. Front Information Display Control Head -J685-, 10.1 Inch Display in the Center of the Instrument Panel
3. Front Information Display Control Head 2 -J1060-, 8.6 Inch Display in the Front Center Console
4. DVD Player -R7- in the Glove Compartment
5. Information Electronics Control Module 1 -J794- Behind the Glove Compartment
6. USB Distributor -R293- in the Front Center Console Storage Compartment
7. Mobile Device Charger 1 -J1146-, Phone Box, in the Front Center Console Storage Compartment
8. USB Connection 1 -U41- in the Rear Center Console
9. TV Tuner -R78- in the Center of the Luggage Compartment at the Rear
10. TV Card Reader -R204- in the Luggage Compartment on the Left Rear Side in the Center
11. Digital Sound System Control Module -J525- in Luggage Compartment on Left Rear Side

Fault Finding is performed using the "Guided Fault Finding"  on the Vehicle Diagnostic Tester.

Notes on MOST Bus

The optical data bus "MOST Bus" is used in addition to the CAN Bus.

A fiber-optic cable is used. Fiber optic cables are routed inside corrugated tubes for protection.

Replace the complete fiber-optic cable if possible.

The front surfaces of the connectors must not get dirty.

If disconnecting the connectors: Attach the Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9  .

Fig 1: Fiber-Optic Conductor Repair Set VAS 6223A

Courtesy of AUDI OF AMERICA, LLC

When routing fiber-optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink the fiber-optic cables.

Repairing fiber optic cables. Refer to FIBER-OPTIC CABLES, REPAIRING .
