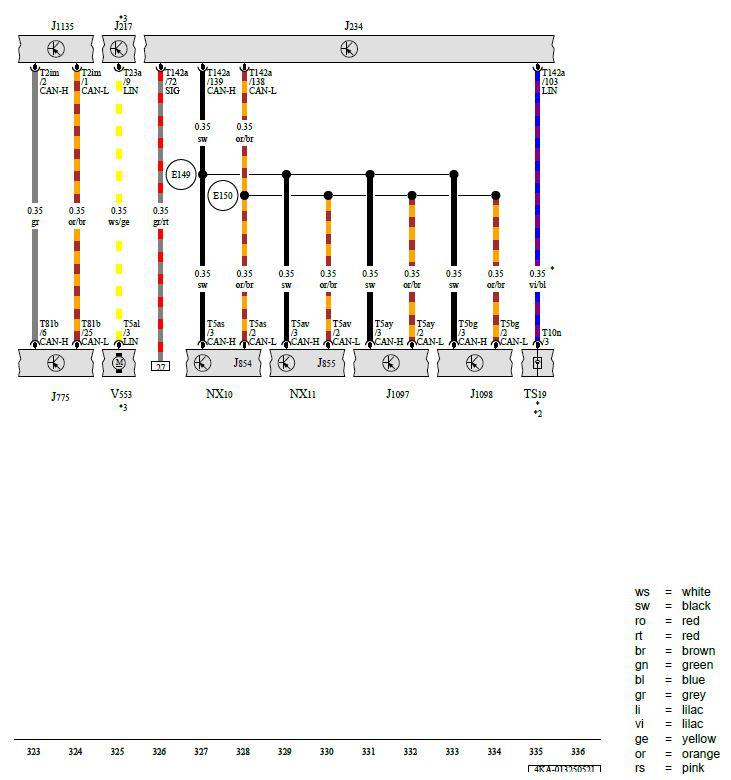

Transmission Control Module, Airbag Control Module, Drivetrain Control Module, Left Rear Seat Belt Tensioner Control Module, Right Rear Seat Belt Tensioner Control Module, Left Front Seat Belt, Right Front Seat Belt, Transmission Electric Pump 2
J217 - Transmission Control Module
J234 - Airbag Control Module
J775 - Drivetrain Control Module
J854 - Left Front Seat Belt Tensioner Control Module
J855 - Right Front Seat Belt Tensioner Control Module
J1097 - Left Rear Seat Belt Tensioner Control Module
J1098 - Right Rear Seat Belt Tensioner Control Module
J1135 - Level Control System Compressor Electronics
NX10 - Left Front Seat Belt
NX11 - Right Front Seat Belt
T2im - 2-Pin Connector, Black
T5al - 5-Pin Connector, Black
T5as - 5-Pin Connector, Naturally Cloudy
T5av - 5-Pin Connector, Naturally Cloudy
T5ay - 5-Pin Connector, Naturally Cloudy
T5bg - 5-Pin Connector, Naturally Cloudy
T10n - 10-Pin Connector, Black
T23a - 23-Pin Connector, Black
T81b - 81-Pin Connector, Black
T142a - 142-Pin Connector, Yellow
TS19 - Front Passenger Seat Coupling Point
V553 - Transmission Electric Pump 2
E149 - Connection 1 (CAN Bus Airbag Control Module, High)
E150 - Connection 1 (CAN Bus Airbag Control Module, Low)
* - For USA Only
*2 - Refer to Applicable Airbag Wiring Diagram
*3 - Refer to Applicable Wiring Diagram for Automatic Transmission
