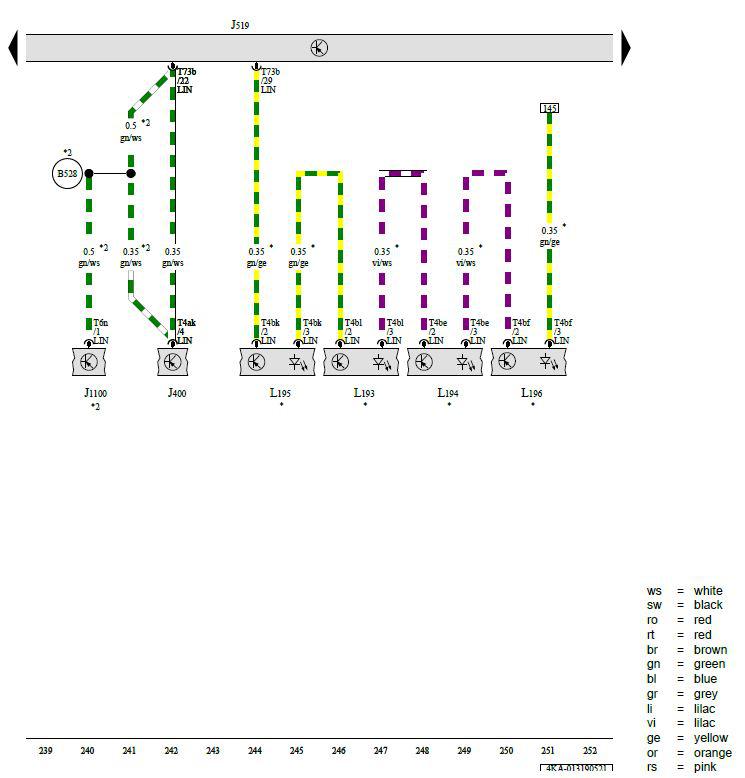

Wiper Motor Control Module, Vehicle Electrical System Control Module, Windshield Washer Pump Control Module, Front Center Console Ambient Lighting Bulb 1, Front Center Console Ambient Lighting Bulb 2, Front Center Console Ambient Lighting Bulb 3, Front Center Console Ambient Lighting Bulb 4

Courtesy of AUDI OF AMERICA, LLC

J400 -  Wiper Motor Control Module

J519 -  Vehicle Electrical System Control Module

J1100 -  Windshield Washer Pump Control Module

L193 -  Front Center Console Ambient Lighting Bulb 1

L194 -  Front Center Console Ambient Lighting Bulb 2

L195 -  Front Center Console Ambient Lighting Bulb 3

L196 -  Front Center Console Ambient Lighting Bulb 4

T4ak -  4-Pin Connector, Black

T4be -  4-Pin Connector, Black

T4bf -  4-Pin Connector, Brown

T4bk -  4-Pin Connector, Brown

T4bl -  4-Pin Connector, Black

T6n -  6-Pin Connector, Black

T73b -  73-Pin Connector, Black, Black

B528 -  LIN Bus Connection 1 (in Main Wiring Harness)

* -  For Vehicles with Ambient Lighting

*2 -  Optional Equipment
