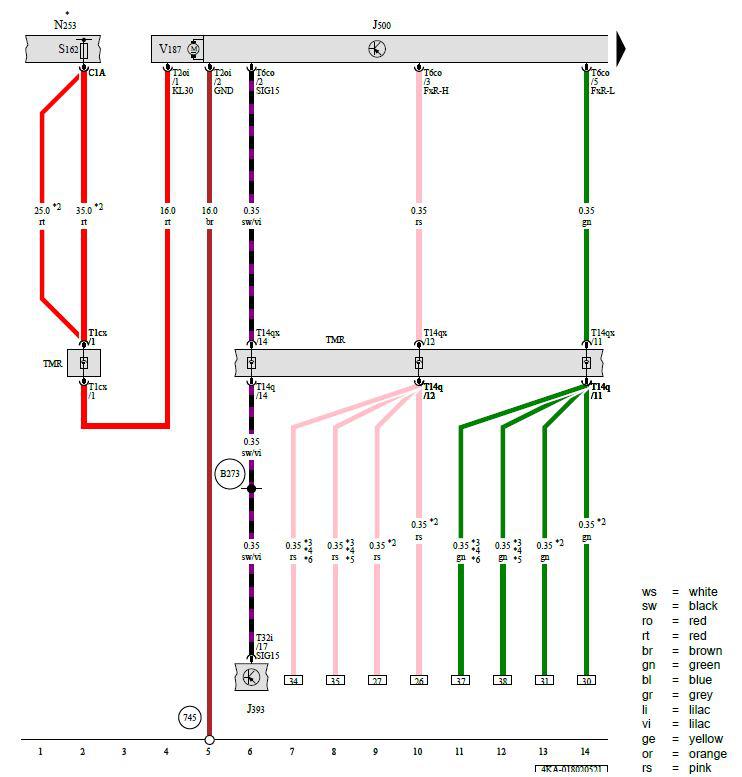

Comfort System Central Control Module, Power Steering Control Module, Battery Interrupt Igniter, Electromechanical Power Steering Motor
J393 - Comfort System Central Control Module
J500 - Power Steering Control Module
N253 - Battery Interrupt Igniter
S162 - Fuse 1 (Terminal 30) on Battery Fuse Panel
T1c - 1-Pin Connector, Black
T1cx - 1-Pin Connector, Black
T2oi - 2-Pin Connector, Black
T6co - 6-Pin Connector, Brown
T14q - 14-Pin Connector, Black
T14qx - 14-Pin Connector, Black
T32i - 32-Pin Connector, Naturally Cloudy, Black
TMR - Coupling Point in Engine/Motor Compartment, Right
V187 - Electromechanical Power Steering Motor
745 - Ground Connection 3 on Right Front Longitudinal Member
B273 - Positive Connection (15) (in Main Wiring Harness)
* - Refer to Applicable Wiring Diagram for Fuse Positions
*2 - Depending on Equipment
*3 - For Vehicles with a 4-Cylinder Engine
*4 - For Vehicles with a 6-Cylinder Engine
*5 - For AWD Vehicles
*6 - For Vehicles Without All-Wheel Drive
