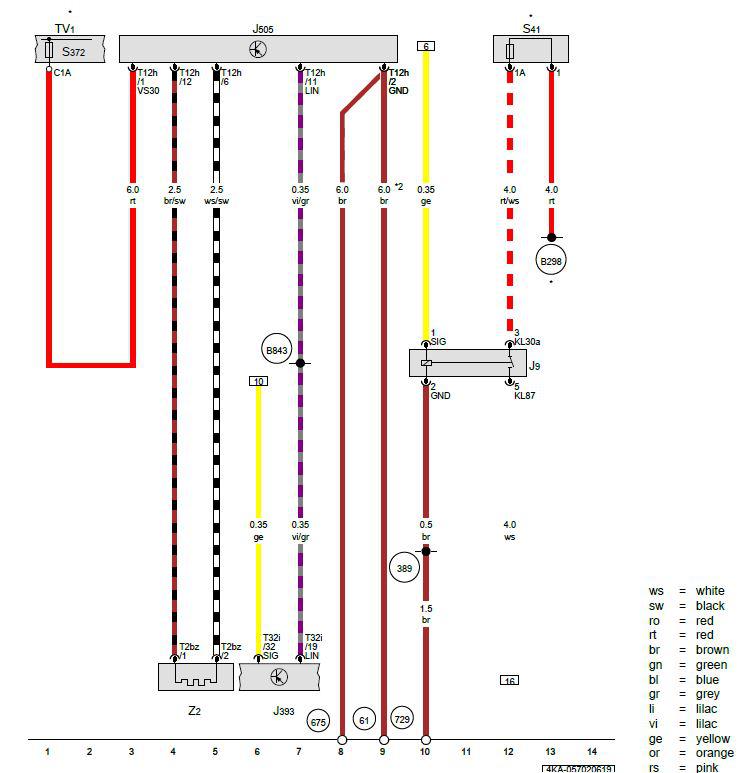

Rear Window Defogger Relay, Windshield Defogger Control Module, Rear Window Defogger Fuse, Windshield Defogger
J9 - Rear Window Defogger Relay
J393 - Comfort System Central Control Module
J505 - Windshield Defogger Control Module
S41 - Rear Window Defogger Fuse
S372 - Wire Junction Fuse 2
T2bz - 2-Pin Connector, Black
T12h - 12-Pin Connector, Black
T32i - 32-Pin Connector, Black, Naturally Cloudy
TV1 - Wire Junction
Z2 - Windshield Defogger
61 - Ground Connection on Left C-Pillar
389 - Ground Connection 24 (in Main Wiring Harness)
675 - Ground Connection 2 in Luggage Compartment on Right Side
729 - Ground Connection on Left Rear Wheel Housing
B298 - Positive Connection 2 (30) (in Main Wiring Harness)
B843 - LIN Bus Connection 9 (in Main Wiring Harness)
* - Refer to Applicable Wiring Diagram for Fuse Positions
*2 - For Vehicles with Hybrid Drive
