Fragrance Diffuser System Control Module -J1101- With Fragrance Diffuser System Blower -V686-, Removing And Installing: Removing

-- Remove the Fragrance System Functional Unit -GX43-, but do not disconnect it from the bracket. Refer to Fragrance System Functional Unit -GX43-, REMOVING AND INSTALLING .

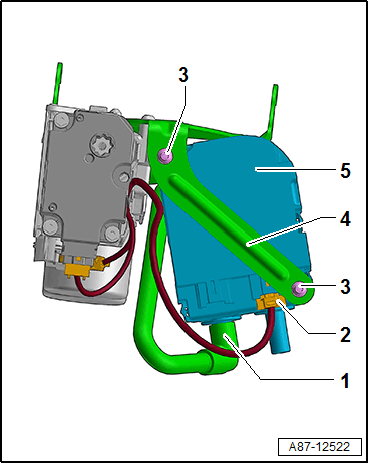

-- Remove the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the hose -1- from the Fragrance Diffuser System Control Module -J1101- -5-.

-- Remove the bolts -3- and the Fragrance Diffuser System Control Module -J1101- -5-.
