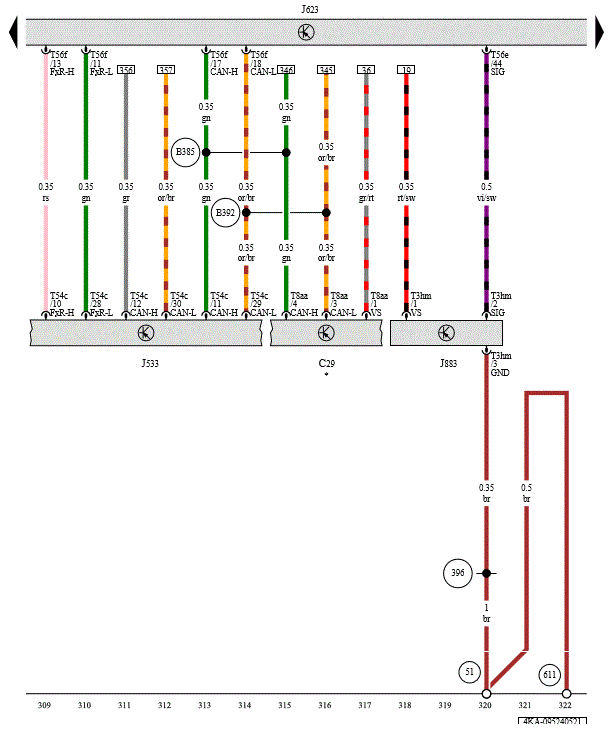

Starter Generator, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Exhaust Door Control Unit: Notes

G00589436Courtesy of AUDI OF AMERICA, LLC
