Overview - Navigation System, MMI Navigation, I8V+7UG

• Information Electronics Control Module 1 -J794- Behind the Glove Compartment
• Front Information Display Control Head -J685-, Inch Display in the Center of the Instrument Panel
• Front Information Display Control Head 2 -J1060-, 8.6 Inch Display in the Front Center Console
• Instrument Cluster Control Module -J285-, display in instrument cluster
• USB Distributor -R293- in the Front Center Console Storage Compartment, two USB ports for data and charging, UF7
• Radio -R- integrated in the Information Electronics Control Module 1 -J794-
• Sound system: basic sound, 8RM
• Sound system: standard sound system, 9VD
• Video input for rearview camera system, KA2
• Bluetooth Hands-Free Calling, 9ZX
• Wi-Fi hotspot, EL3

Optional

• Digital Radio -R147- integrated in the Information Electronics Control Module 1 -J794-, only Europe/Rest of World and QV3
• Radio System, Satellite -R146- integrated in the Information Electronics Control Module 1 -J794-, only USA and QV3
• DVD Player -R7- in glove compartment, 7D5
• USB Distributor -R293- in the Front Center Console Storage Compartment, 2 USB ports, SIM card, SD card, ASI, UI2/UE7/IU1
• USB Connection 1 -U41- in the Rear Center Console, UF8
• Digital Sound System Control Module -J525- on the left rear side of the luggage compartment, 9VS/8RF only
• Sound system: premium sound system, 9VS
• Sound system: advanced sound system, 8RF
• Audi phone box light, 9ZV
• Audi phone box, 9ZE
• Emergency call system, IW1/IW3/IW5
• Multifunction Steering Wheel

ASI - Audi Smartphone Integration

Courtesy of AUDI OF AMERICA, LLC

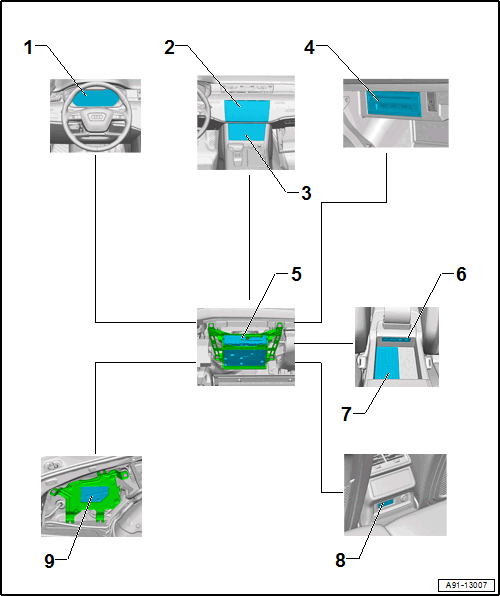

1. Instrument Cluster Control Module -J285-
2. Front Information Display Control Head -J685-, Inch Display in the Center of the Instrument Panel
3. Front Information Display Control Head 2 -J1060-, 8.6 Inch Display in the Front Center Console
4. DVD Player -R7- in the Glove Compartment
5. Information Electronics Control Module 1 -J794- Behind the Glove Compartment
6. USB Distributor -R293- in the Front Center Console Storage Compartment
7. Mobile Device Charger 1 -J1146-, Phone Box, in the Front Center Console Storage Compartment
8. USB Connection 1 -U41- in the Rear Center Console
9. Digital Sound System Control Module -J525- in Luggage Compartment on Left Rear Side

Fault Finding is performed using the "Guided Fault Finding"  on the Vehicle Diagnostic Tester.

Notes on MOST Bus

The optical data bus "MOST Bus" is used in addition to the CAN Bus.

A fiber-optic cable is used. Fiber optic cables are routed inside corrugated tubes for protection.

Replace the complete fiber-optic cable if possible.

The front surfaces of the connectors must not get dirty.

If disconnecting the connectors: Attach the Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9  .

Fig 1: Fiber-Optic Conductor Repair Set VAS 6223A

Courtesy of AUDI OF AMERICA, LLC

When routing fiber-optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink the fiber-optic cables.

Repairing fiber optic cables. Refer to FIBER-OPTIC CABLES, REPAIRING .
